NSN 5970-01-125-0010 MS310915AU, MS3109-15AU, M85049/140-15AU

Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING

5970-01-125-0010 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.

Part Alternates: MS310915AU, MS3109-15AU, M85049/140-15AU , M85049/68-1A15U, M8504914015AU, M85049681A15U, AS85049/140 , AS85049140, MIL-C-85049/68, MILC8504968, 202D163460, 202D163-4-60, 5970-01-125-0010, 01-125-0010, 5970011250010, 011250010

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 JAN 1982	01-125-0010	61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE )

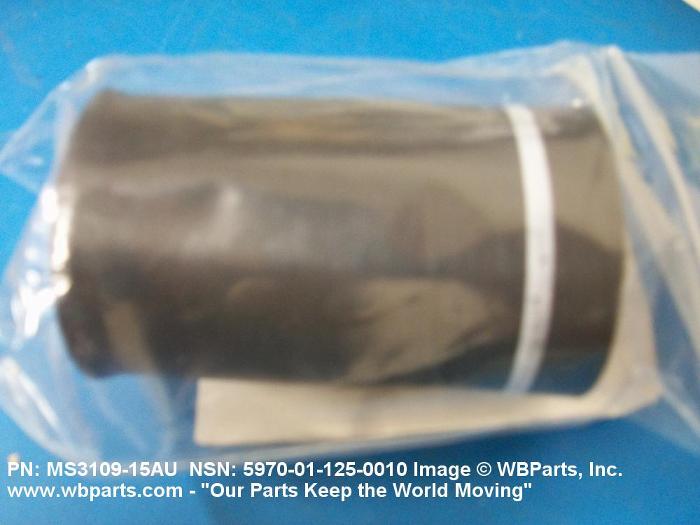

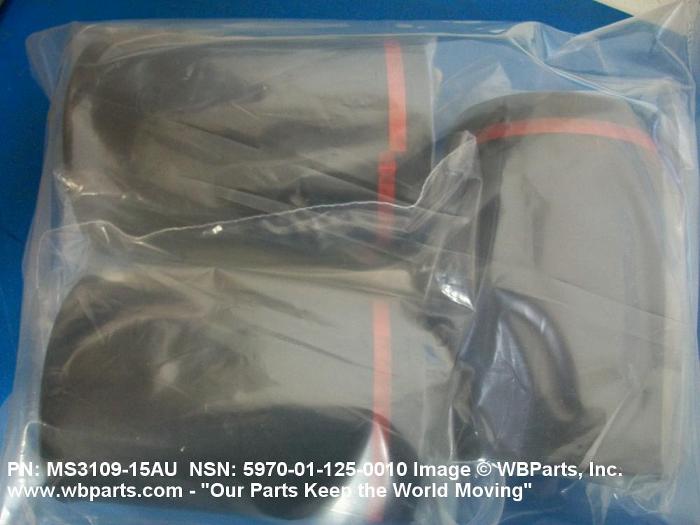

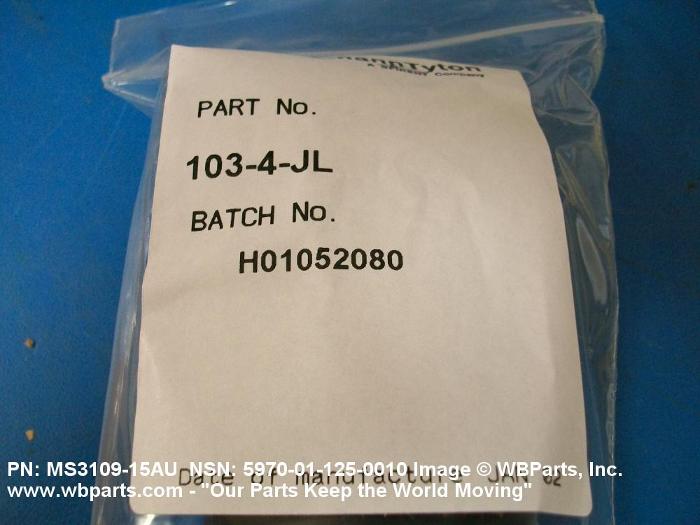

Drawings & Photos | NSN 5970-01-125-0010

Part Number	Request Date	QTY	Origin
5970-01-125-0010	2019-07-195	105	DIBBS
5970-01-125-0010	2019-06-153	98	DIBBS
5970-01-125-0010	2019-01-02	56	DIBBS
5970-01-125-0010	2018-07-204	54	DIBBS
5970-01-125-0010	2012-05-149	29	DIBBS
5970-01-125-0010	2012-05-138	48	DIBBS
AS85049140	2011-12-349	25	United States
MS310915AU	2011-08-213	5	United States
MS310915AU	2011-08-213	12	United States
MS310915AU	2011-07-195	1	United States
MS310915AU	2011-06-181	97	United States
MS310915AU	2011-05-145	1	United States
5970-01-125-0010	2010-07-203	45	DIBBS

Cross Reference | NSN 5970-01-125-0010

Part Number	Cage Code	Manufacturer
202D163-4-60	06090	TYCO ELECTRONICS CORPORATION
AS85049/140	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/140-15AU	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/68-1A15U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-85049/68	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3109-15AU	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-01-125-0010

Compare

Related Products | NSN 5970-01-125-0010

5970-01-125-0319, 5970-01-125-0391, 5970-01-125-0392, 5970-01-125-0393, 5970-01-125-0526

Technical Data | NSN 5970-01-125-0010

Characteristic	Specifications
STYLE DESIGNATOR	B1 BOOT-STRAIGHT
MAIN BODY WALL THICKNESS	0.090 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY
MAIN BODY OVERALL LENGTH	4.080 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY
MAIN BODY SMALL END INSIDE DIAMETER	1.680 INCHES MINIMUM AS SUPPLIED 0.390 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY
MAIN BODY LARGE END INSIDE DIAMETER	1.680 INCHES MINIMUM AS SUPPLIED 1.110 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY
DISTANCE FROM BOTTOM OF SHOULDER TO LARGE END OF MAIN BODY	2.220 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY
DISTANCE FROM TOP OF SHOULDER TO SMALL END OF MAIN BODY	ANY ACCEPTABLE AFTER UNRESTRICTED RECOVERY
MATERIAL	PLASTIC,POLYOLEFIN,MIL-I-81765/1, TYPE II
COLOR	BLACK
FLEXIBILITY	FLEXIBLE
TEMP RATING	-55.0 DEG CELSIUS AND 135.0 DEG CELSIUS
MINIMUM TENSILE STRENGTH	1200 POUNDS PER SQUARE INCH
DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS	200.0 VOLTS PER MIL /0.001 INCH/
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT
RELIABILITY INDICATOR	NOT ESTABLISHED
SPECIAL FEATURES	RED COLOR STRIPE; LARGE END HAS LIP
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-85049/68
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M85049/68-1A15U

Restrictions/Controls & Freight Information | NSN 5970-01-125-0010

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103300	INSULATING MATERIAL NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-01-125-0010

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
