NSN 5970-01-122-5876 ST5M1653002, ST5M1653-002, TAK CAPS 3/16

Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING

5970-01-122-5876 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.

Part Alternates: ST5M1653002, ST5M1653-002, TAK CAPS 3/16, TAK3/16, TAK316, TAK-CAPS-3/16-N, TAKCAPS316, TAKCAPS316N, 10134265 , 5970-01-122-5876, 01-122-5876, 5970011225876, 011225876

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 NOV 1981	01-122-5876	61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE )

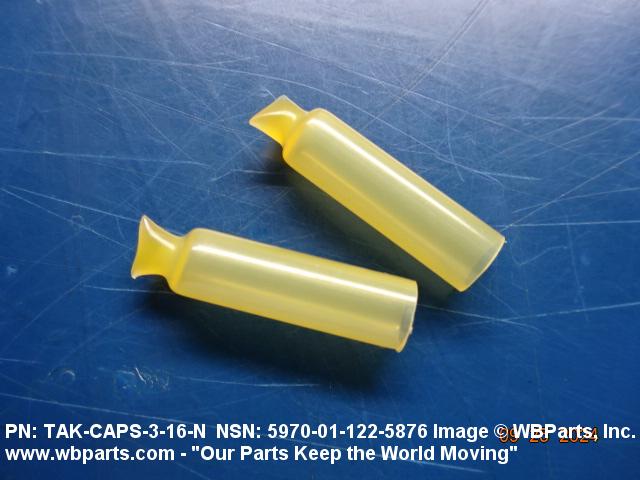

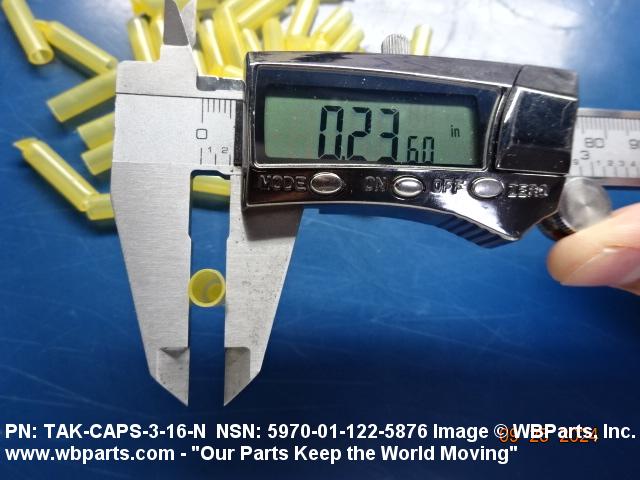

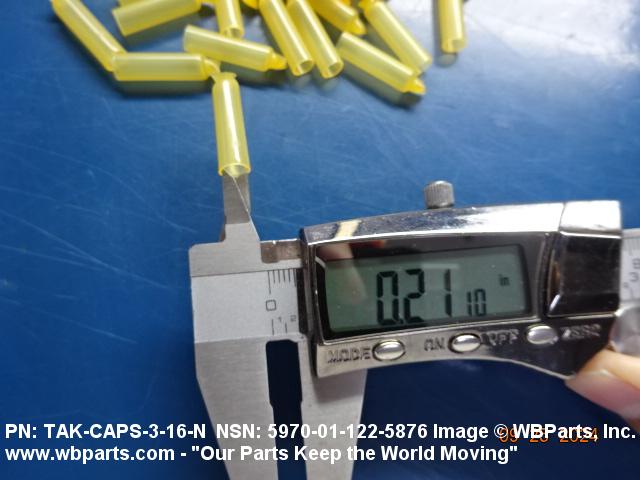

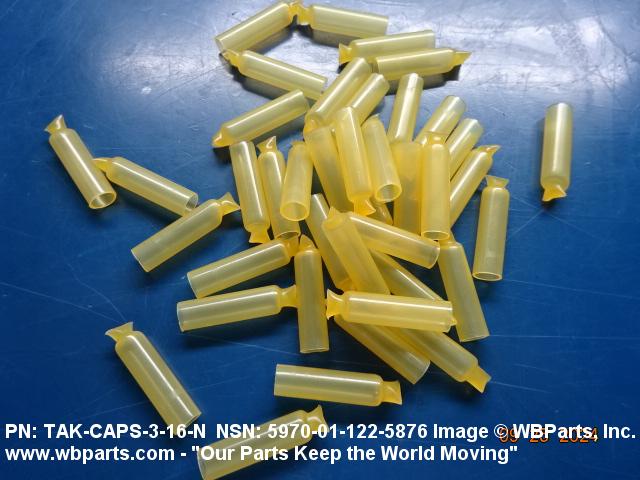

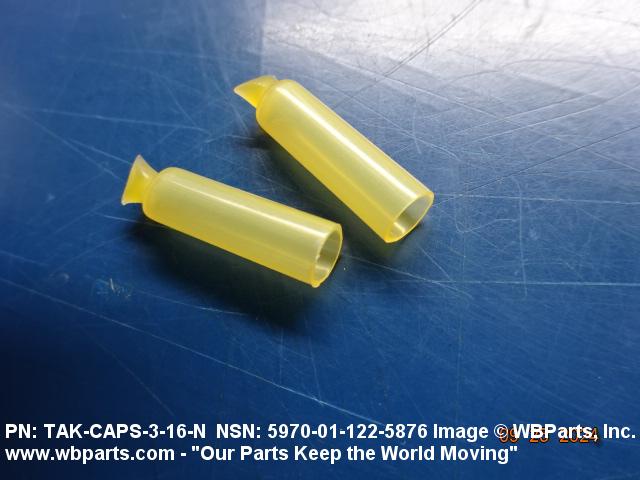

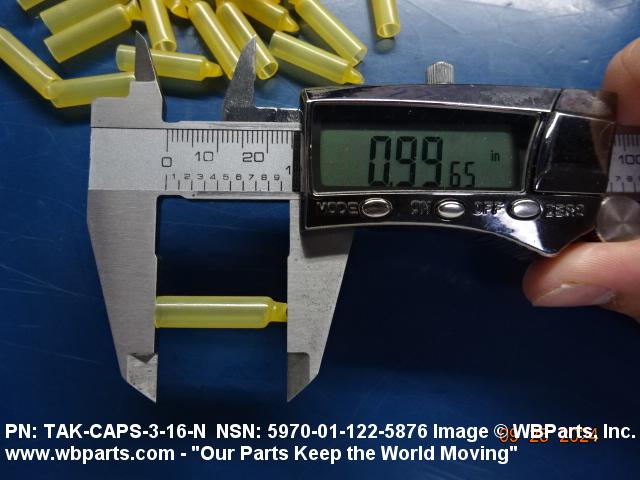

Drawings & Photos | NSN 5970-01-122-5876

Part Number	Request Date	QTY	Origin
5970-01-122-5876	2024-09-263	40	United States
5970-01-122-5876	2024-09-262	40	United States
5970-01-122-5876	2024-02-51	10	Spain
5970-01-122-5876	2023-05-128	10	Spain
TAK316	2016-02-60	1	ES
5970-01-122-5876	2012-06-173	94351	DIBBS
5970-01-122-5876	2012-06-158	94351	DIBBS
5970-01-122-5876	2012-05-130	68405	DIBBS
5970-01-122-5876	2012-04-113	35692	DIBBS
5970-01-122-5876	2012-02-48	26384	DIBBS
5970-01-122-5876	2011-12-347	12919	DIBBS
5970-01-122-5876	2011-06-157	8891	DIBBS
5970-01-122-5876	2011-05-139	2512	DIBBS
5970-01-122-5876	2009-05-151	13392	DIBBS
5970-01-122-5876	2009-02-55	6480	DIBBS
5970-01-122-5876	2008-11-323	3097	DIBBS

Cross Reference | NSN 5970-01-122-5876

Part Number	Cage Code	Manufacturer
ST5M1653-002	76301	BOEING COMPANY, THE DBA BOEING
TAK CAPS 3/16	06090	TYCO ELECTRONICS CORPORATION
TAK-CAPS-3/16-N	06090	TYCO ELECTRONICS CORPORATION
TAK3/16	06090	TYCO ELECTRONICS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-01-122-5876

Compare

Related Products | NSN 5970-01-122-5876

5970-01-122-6579, 5970-01-122-7406, 5970-01-122-7410, 5970-01-122-8085, 5970-01-122-8124

Technical Data | NSN 5970-01-122-5876

Characteristic	Specifications
STYLE DESIGNATOR	B10 BOOT-STRAIGHT
LARGE END WALL THICKNESS OF MAIN BODY	0.024 INCHES MINIMUM AFTER UNRESTRICTED RECOVERY
MAIN BODY WALL THICKNESS	0.024 INCHES MINIMUM AFTER UNRESTRICTED RECOVERY
MAIN BODY OVERALL LENGTH	1.060 INCHES MAXIMUM AS SUPPLIED
MAIN BODY LARGE END INSIDE DIAMETER	0.188 INCHES MINIMUM AS SUPPLIED 0.070 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY
MATERIAL	PLASTIC, POLYVINYLIDENE FLUORIDE
COLOR	ANY ACCEPTABLE
FLEXIBILITY	FLEXIBLE
TEMP RATING	-55.0 DEG CELSIUS AND 175.0 DEG CELSIUS
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS	2500.0
ENVIRONMENTAL PROTECTION	FLAME RESISTANT
SPECIAL FEATURES	SEALING INSERT INCLUDED; SLOT IN CLOSED END
MANUFACTURERS CODE	06090
DESIGN CONTROL REFERENCE	TAK-CAPS-3/16-N

Restrictions/Controls & Freight Information | NSN 5970-01-122-5876

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103300	INSULATING MATERIAL NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-01-122-5876

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
