NSN 5970-01-107-6784 341A0153, 341A015-3, 01-107-6784
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-107-6784 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 341A0153, 341A015-3, 5970-01-107-6784, 01-107-6784, 5970011076784, 011076784
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 FEB 1981 | 01-107-6784 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Drawings & Photos | NSN 5970-01-107-6784
Cross Reference | NSN 5970-01-107-6784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 341A015-3 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-107-6784
Technical Data | NSN 5970-01-107-6784
| Characteristic | Specifications |
|---|---|

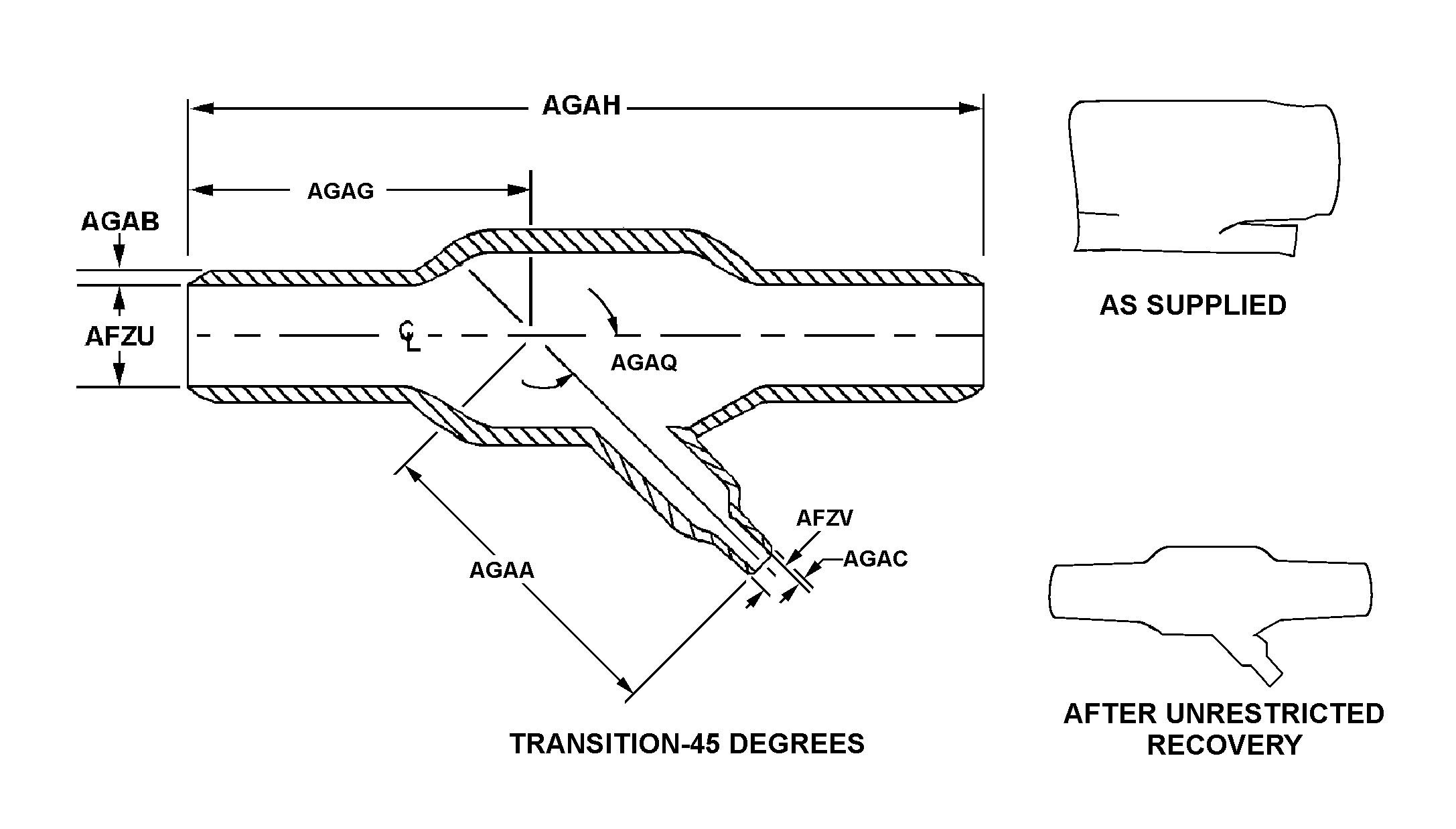

| STYLE DESIGNATOR | B6 TRANSITION-45 DEGREES |
