NSN 5970-01-104-1824 087INS01A, 087-INS-01A, 01-104-1824
Product Details | STANDOFF INSULATOR
5970-01-104-1824 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 087INS01A, 087-INS-01A, 5970-01-104-1824, 01-104-1824, 5970011041824, 011041824
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 NOV 1980 | 01-104-1824 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-01-104-1824
Cross Reference | NSN 5970-01-104-1824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 087-INS-01A | 30103 | TECHNLOGY FOR CMMNCATIONS INTL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-104-1824
Technical Data | NSN 5970-01-104-1824
| Characteristic | Specifications |
|---|---|

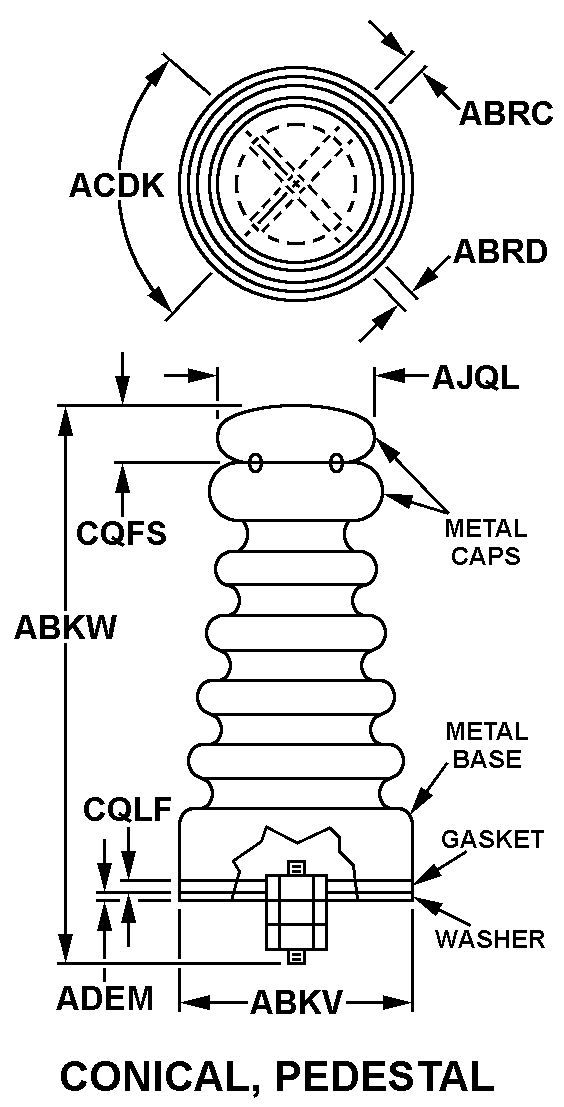

| STYLE DESIGNATOR | M37 CONICAL, PEDESTAL |
| OUTSIDE DIAMETER | 4.750 INCHES NOMINAL |
| OVERALL HEIGHT | 8.250 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.406 INCHES NOMINAL |
| TOP DIAMETER | 3.000 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 7.310 INCHES NOMINAL |
| FIRST CAP HEIGHT | 4.060 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL ALUMINA |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MANUFACTURERS CODE | 30103 |
| DESIGN CONTROL REFERENCE | 087-INS-01A |
Restrictions/Controls & Freight Information | NSN 5970-01-104-1824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
