NSN 5970-01-103-8824 3187464, 318746-4, 01-103-8824
Product Details | PLATE INSULATOR
5970-01-103-8824 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 3187464, 318746-4, 5970-01-103-8824, 01-103-8824, 5970011038824, 011038824
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 NOV 1980 | 01-103-8824 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-103-8824
Cross Reference | NSN 5970-01-103-8824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 318746-4 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-103-8824
Technical Data | NSN 5970-01-103-8824
| Characteristic | Specifications |
|---|---|

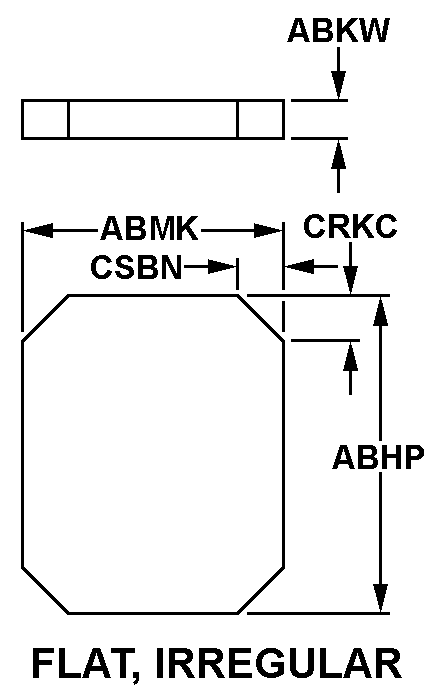

| STYLE DESIGNATOR | K23 FLAT, IRREGULAR |
| OVERALL LENGTH | 0.563 INCHES NOMINAL |
| OVERALL HEIGHT | 0.093 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| OVERALL WIDTH | 0.358 INCHES NOMINAL |
| CORNER CUT LENGTH | 0.031 INCHES NOMINAL |
| CORNER CUT WIDTH | 0.031 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, POLYTETRAFLUOROETHYLENE |
| MANUFACTURERS CODE | 00752 |
| DESIGN CONTROL REFERENCE | 318746-4 |
Restrictions/Controls & Freight Information | NSN 5970-01-103-8824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
