Product Details | ASBESTOS INSULATOR
5970-01-103-5232 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 3311236-69, 5970-01-103-5232, 01-103-5232, 5970011035232, 331123669, 011035232
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 NOV 1980 | 01-103-5232 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-103-5232
Demand History | NSN 5970-01-103-5232
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-103-5232 | 2018-04-107 | 89 | DIBBS |
| 5970-01-103-5232 | 2018-04-93 | 89 | DIBBS |
| 5970-01-103-5232 | 2017-12-347 | 25 | DIBBS |
| 5970-01-103-5232 | 2017-12-339 | 25 | DIBBS |
| 5970-01-103-5232 | 2010-01-13 | 87 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-103-5232
Related Products | NSN 5970-01-103-5232
Technical Data | NSN 5970-01-103-5232
| Characteristic | Specifications |
|---|---|

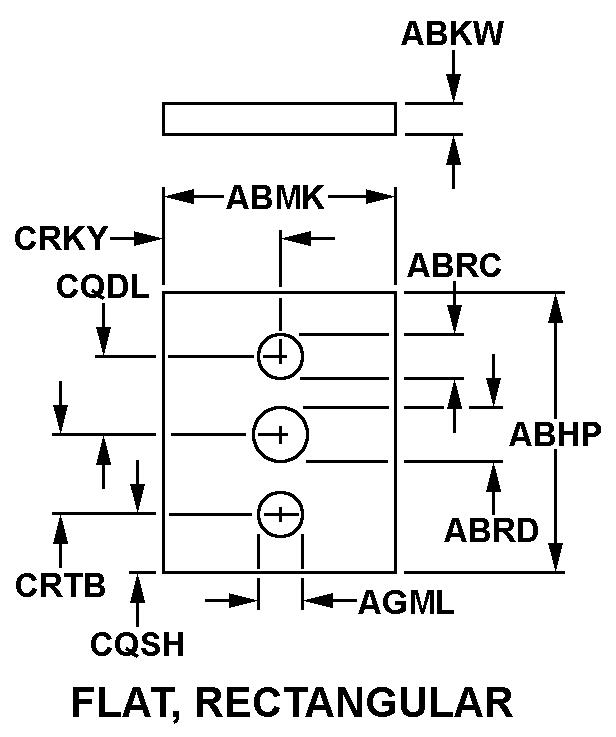

| STYLE DESIGNATOR | K5 FLAT, RECTANGULAR |
| OVERALL LENGTH | 2.460 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| OVERALL WIDTH | 0.820 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.271 INCHES MINIMUM AND 0.278 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.271 INCHES MINIMUM AND 0.278 INCHES MAXIMUM |
| THIRD HOLE DIAMETER | 0.271 INCHES MINIMUM AND 0.278 INCHES MAXIMUM |
| FIRST HOLE SPACING | 0.410 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.820 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.820 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL IS THERMASHIELD RL-8904; 1 CORNER HAS 0.25 INCH 45 DEGREE BEVEL |
Restrictions/Controls & Freight Information | NSN 5970-01-103-5232
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
