NSN 5970-01-089-1556 PURCH80064, 4592765, 01-089-1556
Product Details | DISK INSULATOR
5970-01-089-1556 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Part Alternates: PURCH80064, 4592765, 5970-01-089-1556, 01-089-1556, 5970010891556, 010891556
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JAN 1980 | 01-089-1556 | 18295 ( INSULATOR, DISK ) |
Drawings & Photos | NSN 5970-01-089-1556
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-089-1556
Technical Data | NSN 5970-01-089-1556
| Characteristic | Specifications |
|---|---|

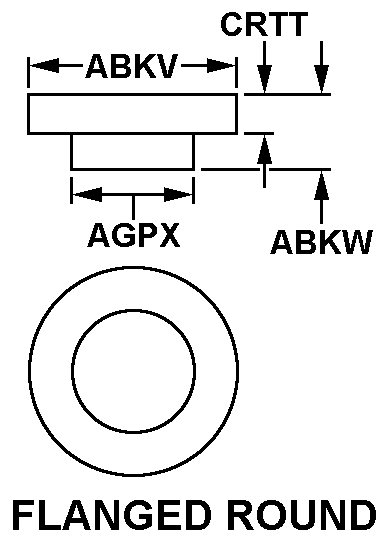

| STYLE DESIGNATOR | E3 FLANGED ROUND |
| OUTSIDE DIAMETER | 1.970 INCHES MINIMUM AND 2.030 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.527 INCHES MINIMUM AND 0.533 INCHES MAXIMUM |
| SHOULDER OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| SHOULDER DEPTH | 0.388 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC SHEET, THERMOSETTING, MIL-P-18177, TYPE GEE |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 4592765 |
Restrictions/Controls & Freight Information | NSN 5970-01-089-1556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
