NSN 5970-01-078-1554 4-082058-01, 01-078-1554, 408205801
Product Details | PLATE INSULATOR
5970-01-078-1554 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 4-082058-01, 5970-01-078-1554, 01-078-1554, 5970010781554, 408205801, 010781554
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JUN 1979 | 01-078-1554 | 18296 ( INSULATOR, PLATE ) |

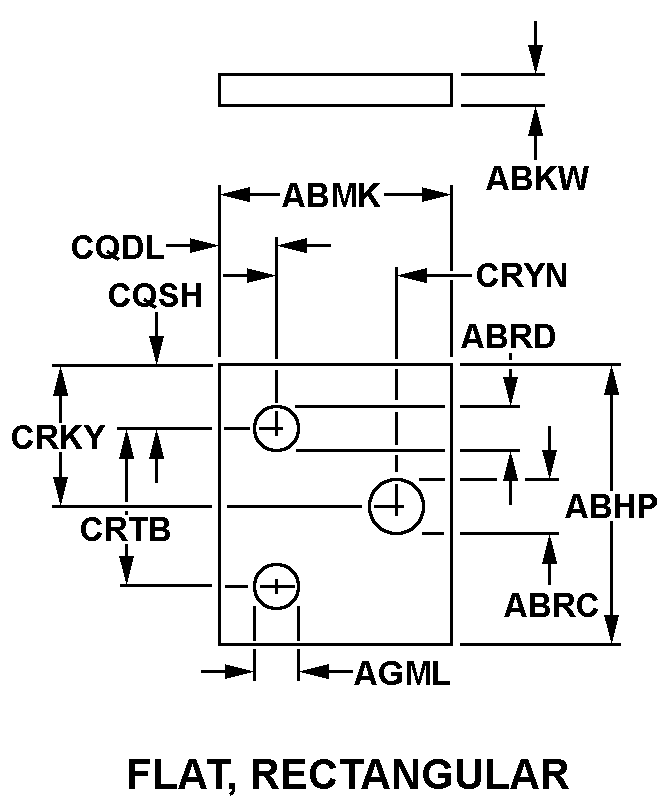

Drawings & Photos | NSN 5970-01-078-1554
Cross Reference | NSN 5970-01-078-1554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-082058-01 | 08748 | ELDEC CORPORATION DBA CRANE AEROSPACE & ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-078-1554
Technical Data | NSN 5970-01-078-1554
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | K6 FLAT, RECTANGULAR |
| OVERALL LENGTH | 0.840 INCHES NOMINAL |
| OVERALL HEIGHT | 0.005 INCHES NOMINAL |
| OVERALL WIDTH | 0.700 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.126 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.126 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| THIRD HOLE DIAMETER | 0.126 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| FOURTH HOLE SPACING | 0.100 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.170 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.420 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.500 INCHES NOMINAL |
| FIFTH HOLE SPACING | 0.295 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, POLYIMIDE, MIL-P-46112, TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5970-01-078-1554
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
