NSN 5970-01-068-5074 202D2214, 202D221-4, 01-068-5074
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-068-5074 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 202D2214, 202D221-4, 5970-01-068-5074, 01-068-5074, 5970010685074, 010685074
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 26 NOV 1978 | 01-068-5074 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Cross Reference | NSN 5970-01-068-5074
Part Number | Cage Code | Manufacturer |
---|---|---|
202D221-4 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-068-5074
Related Products | NSN 5970-01-068-5074
Technical Data | NSN 5970-01-068-5074
Characteristic | Specifications |
---|---|

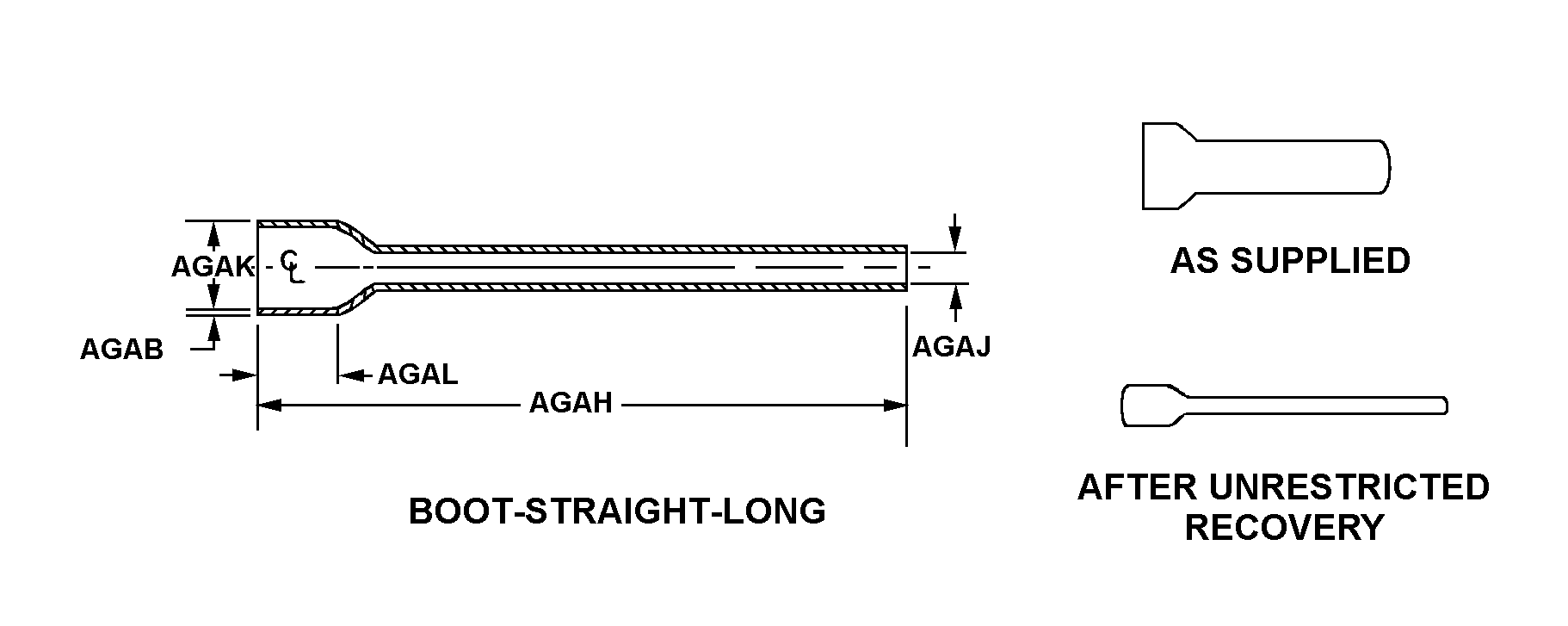

STYLE DESIGNATOR | B2 BOOT-STRAIGHT-LONG |
MAIN BODY WALL THICKNESS | 0.060 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
MAIN BODY OVERALL LENGTH | 4.770 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
MAIN BODY SMALL END INSIDE DIAMETER | 1.010 INCHES MINIMUM AS SUPPLIED 0.290 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
MAIN BODY LARGE END INSIDE DIAMETER | 1.010 INCHES MINIMUM AS SUPPLIED 0.590 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
DISTANCE FROM BOTTOM OF SHOULDER TO LARGE END OF MAIN BODY | 0.480 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
MATERIAL | PLASTIC,POLYOLEFIN,RT-1304,RAYCHE M CORP |
COLOR | BLACK |
FLEXIBILITY | FLEXIBLE |
TEMP RATING | -55.0 DEG CELSIUS |
MINIMUM TENSILE STRENGTH | 1200 POUNDS PER SQUARE INCH |
DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
SPECIAL FEATURES | LARGE END HAS LIP |
