Product Details | STANDOFF INSULATOR
5970-01-038-9446 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 7894386001, 789-4386-001, 5970-01-038-9446, 01-038-9446, 5970010389446, 010389446
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 APR 1977 | 01-038-9446 | 00225 ( INSULATOR, STANDOFF ) |

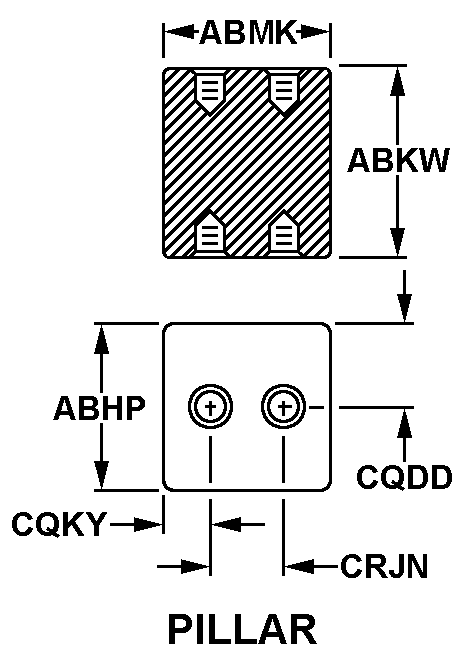

Drawings & Photos | NSN 5970-01-038-9446
Cross Reference | NSN 5970-01-038-9446
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 789-4386-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
