Product Details | STANDOFF INSULATOR
5970-01-018-6778 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: R24229C6, 24229B6, 5970-01-018-6778, 01-018-6778, 5970010186778, 010186778
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 MAR 1976 | 01-018-6778 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-01-018-6778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-018-6778
Technical Data | NSN 5970-01-018-6778
| Characteristic | Specifications |
|---|---|

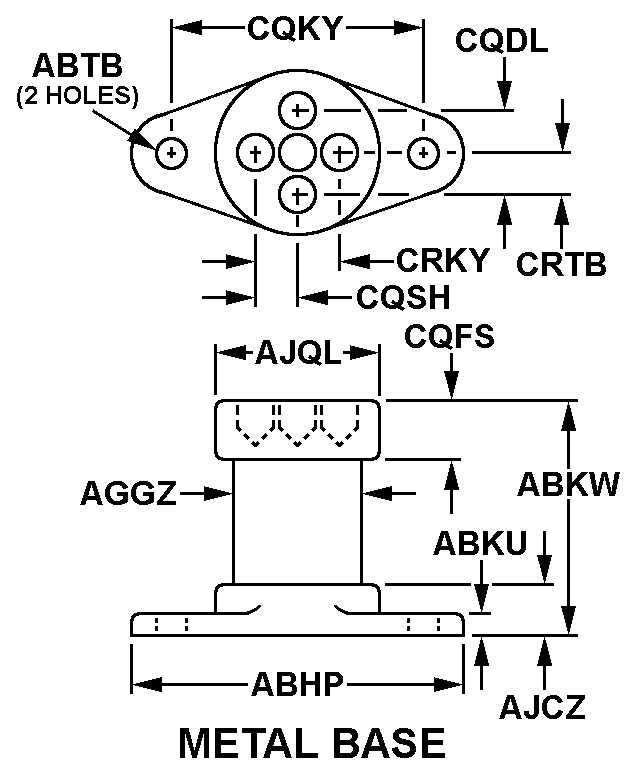

| STYLE DESIGNATOR | M32 METAL BASE |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| OVERALL HEIGHT | 5.375 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| BASE HEIGHT | 0.688 INCHES NOMINAL |
| TOP DIAMETER | 1.375 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.562 INCHES NOMINAL |
| FIRST CAP HEIGHT | 1.000 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 2.250 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.281 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.562 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.281 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL STEATITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | CAP UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.250 CAP INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 20 CAP |
| THREAD CLASS AND LOCATION | 2B CAP |
| THREAD LENGTH AND LOCATION | 0.281 CAP INCHES NOMINAL |
