NSN 5970-01-014-5126 10236599-1, 01-014-5126, 102365991
Product Details | BUSHING INSULATOR
5970-01-014-5126 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 10236599-1, 5970-01-014-5126, 01-014-5126, 5970010145126, 102365991, 010145126
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 24 DEC 1975 | 01-014-5126 | 18301 ( INSULATOR, BUSHING ) |
Cross Reference | NSN 5970-01-014-5126
Part Number | Cage Code | Manufacturer |
---|---|---|
10236599-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-014-5126
Related Products | NSN 5970-01-014-5126
Technical Data | NSN 5970-01-014-5126
Characteristic | Specifications |
---|---|

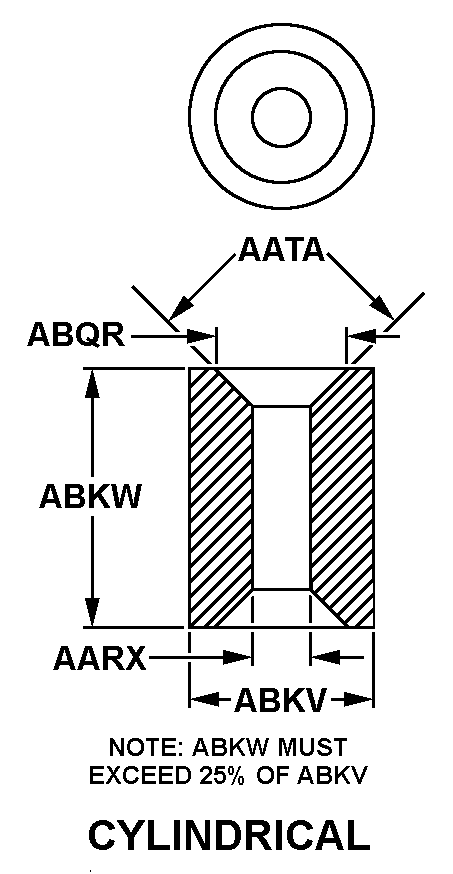

STYLE DESIGNATOR | C3 CYLINDRICAL |
INSIDE DIAMETER | 0.179 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
COUNTERSINK ANGLE IN DEG | 82.0 |
OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
OVERALL HEIGHT | 0.250 INCHES NOMINAL |
COUNTERSINK MAJOR DIAMETER | 0.310 INCHES NOMINAL |
MATERIAL AND LOCATION | OVERALL PLASTIC, PHENOLIC, MIL-P-15047, TYPE NPG |
MANUFACTURERS CODE | 18876 |
DESIGN CONTROL REFERENCE | 10236599-1 |
