NSN 5970-00-998-2229 561A0173, 561A017-3, 00-998-2229
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-00-998-2229 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 561A0173, 561A017-3, 5970-00-998-2229, 00-998-2229, 5970009982229, 009982229
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 NOV 1966 | 00-998-2229 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Drawings & Photos | NSN 5970-00-998-2229
Cross Reference | NSN 5970-00-998-2229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 561A017-3 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-998-2229
Related Products | NSN 5970-00-998-2229
Technical Data | NSN 5970-00-998-2229
| Characteristic | Specifications |
|---|---|

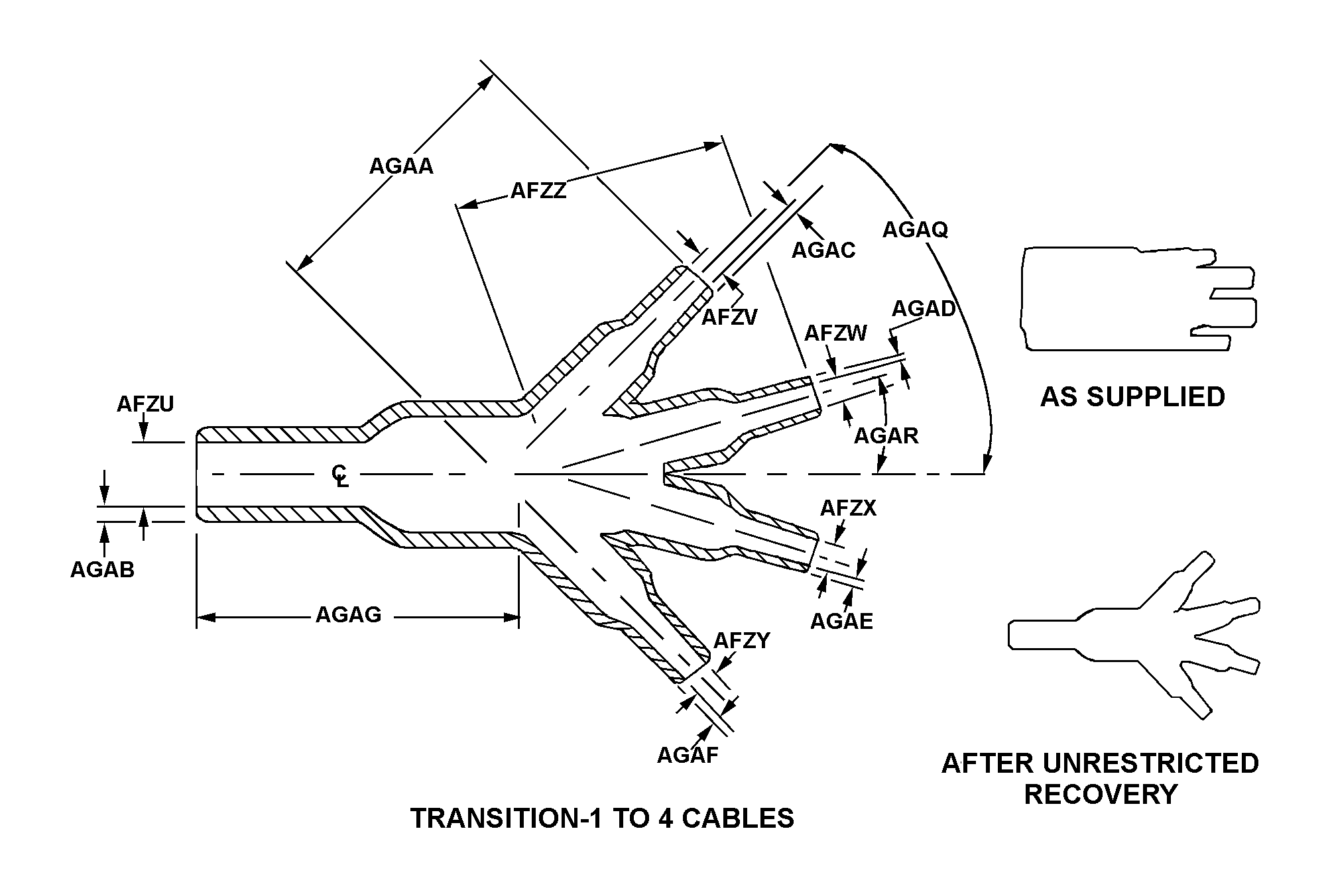

| STYLE DESIGNATOR | B9 TRANSITION-1 TO 4 CABLES |
| MAIN BODY INSIDE DIAMETER | 1.620 INCHES MINIMUM AS SUPPLIED 0.490 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH INSIDE DIAMETER | 1.060 INCHES MINIMUM AS SUPPLIED 0.490 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| SECOND BRANCH INSIDE DIAMETER | 1.060 INCHES MINIMUM AS SUPPLIED 0.490 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| THIRD BRANCH INSIDE DIAMETER | 1.060 INCHES MINIMUM AS SUPPLIED 0.490 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| FOURTH BRANCH INSIDE DIAMETER | 1.060 INCHES MINIMUM AS SUPPLIED 0.490 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM INTERSECTING CENTERLINE OF MAIN BODY TO END OF SECOND BRANCH | 3.960 INCHES NOMINAL AS SUPPLIED |
| DISTANCE FROM INTERSECTING CENTERLINE OF MAIN BODY TO END OF FIRST BRANCH | 3.580 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY WALL THICKNESS | 0.100 INCHES MAXIMUM AS SUPPLIED 0.100 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH WALL THICKNESS | 0.100 INCHES MAXIMUM AS SUPPLIED 0.100 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| SECOND BRANCH WALL THICKNESS | 0.100 INCHES MAXIMUM AS SUPPLIED 0.100 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| THIRD BRANCH WALL THICKNESS | 0.100 INCHES MAXIMUM AS SUPPLIED 0.100 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| FOURTH BRANCH WALL THICKNESS | 0.100 INCHES MAXIMUM AS SUPPLIED 0.100 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM EDGE OF MAIN BODY TO INTERSECTING CENTERLINES | 3.620 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| ANGLE BETWEEN MAIN BODY AND FIRST BRANCH CENTERLINES IN DEG | 10.0 NOMINAL AS SUPPLIED 45.0 NOMINAL AFTER UNRESTRICTED RECOVERY |
| ANGLE BETWEEN MAIN BODY AND SECOND BRANCH CENTERLINES IN DEG | 10.0 NOMINAL AS SUPPLIED 15.0 NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC, POLYOLEFIN, RT-301, RAYCHEM CORP |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| TEMP RATING | -55.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 06090 |
| DESIGN CONTROL REFERENCE | 561A017-3 |
