NSN 5970-00-956-5141 5487004002, 548-7004-002, 00-956-5141
Product Details | BUSHING INSULATOR
5970-00-956-5141 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 5487004002, 548-7004-002, 5970-00-956-5141, 00-956-5141, 5970009565141, 009565141
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-956-5141 | 18301 ( INSULATOR, BUSHING ) |

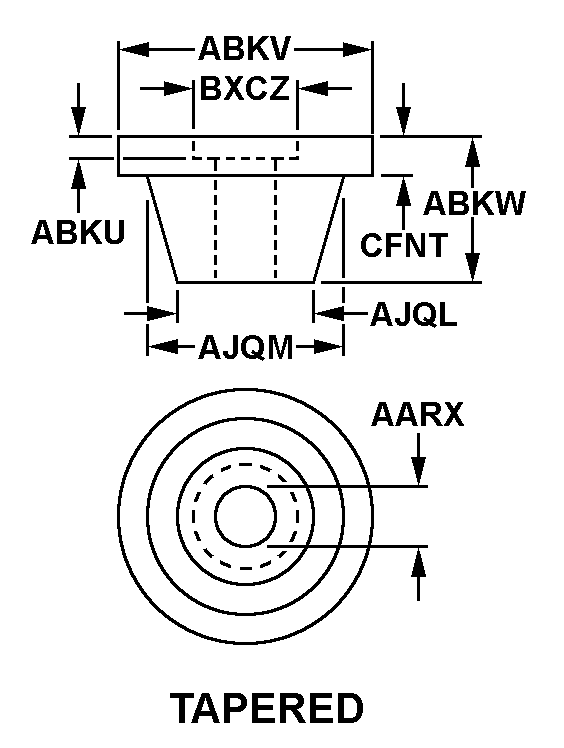

Drawings & Photos | NSN 5970-00-956-5141
Cross Reference | NSN 5970-00-956-5141
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 548-7004-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
