Product Details | PLATE INSULATOR
5970-00-935-4937 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 20151060001, 2015106-0001, 5970-00-935-4937, 00-935-4937, 5970009354937, 009354937
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 NOV 1967 | 00-935-4937 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-935-4937
Cross Reference | NSN 5970-00-935-4937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2015106-0001 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-935-4937
Related Products | NSN 5970-00-935-4937
Technical Data | NSN 5970-00-935-4937
| Characteristic | Specifications |
|---|---|

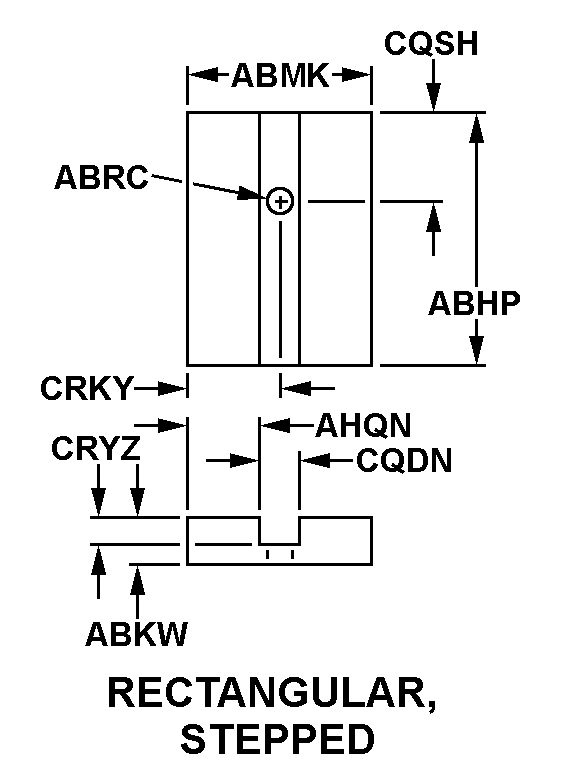

| STYLE DESIGNATOR | K86 RECTANGULAR, STEPPED |
