NSN 5970-00-855-3129 SCA274, 00-855-3129, 008553129
Product Details | STRAIN INSULATOR
5970-00-855-3129 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Part Alternates: SCA274, 5970-00-855-3129, 00-855-3129, 5970008553129, 008553129
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-855-3129 | 00226 ( INSULATOR, STRAIN ) |
Drawings & Photos | NSN 5970-00-855-3129
Cross Reference | NSN 5970-00-855-3129
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCA274 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-855-3129
Technical Data | NSN 5970-00-855-3129
| Characteristic | Specifications |
|---|---|

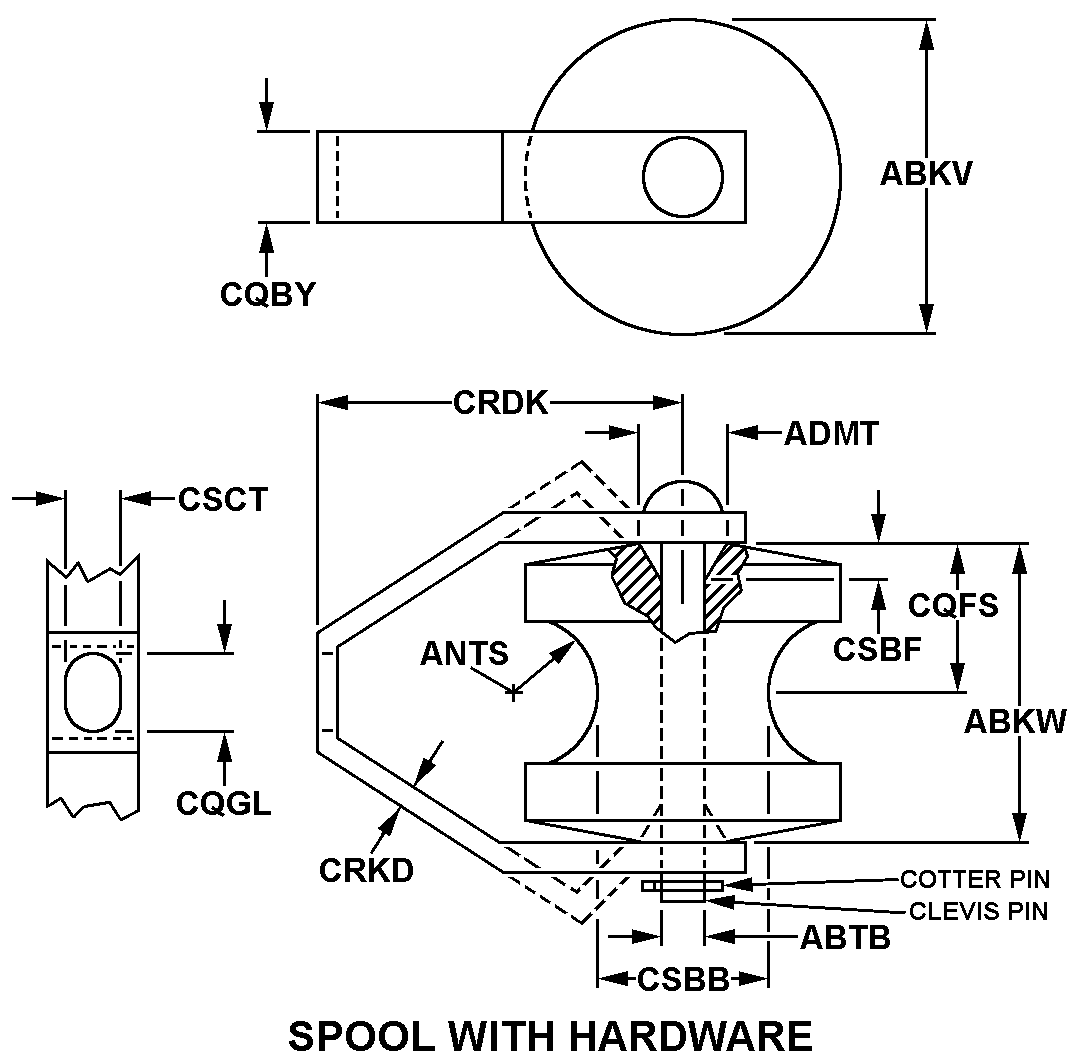

| STYLE DESIGNATOR | N27 SPOOL WITH HARDWARE |
| OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.688 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 1.000 INCHES NOMINAL |
| SHACKLE WIDTH | 1.750 INCHES NOMINAL |
| FIRST CENTER DISTANCE | 1.500 INCHES NOMINAL |
| SHACKLE LENGTH | 5.000 INCHES NOMINAL |
| SHACKLE THICKNESS | 0.125 INCHES NOMINAL |
| MATERIAL AND LOCATION | IRON OR MOUNTING BASE STEEL OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | BROWN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5970-00-855-3129
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103780 | INSULATORS STRAIN NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
