NSN 5970-00-852-7487 NS1A3, C292CLASS523, C29-2CLASS52-3
Product Details | SUSPENSION INSULATOR
5970-00-852-7487 An insulator having an integral provision for the nonrigid assembling of one upon the other for the purpose of extending its insulating range. It is specifically designed to suspend a conductor from a tower or other support.
Part Alternates: NS1A3, C292CLASS523, C29-2CLASS52-3, L1060, 1060, 20S840, 32440, 523, 52-3, 66255, 81022, 8200, 900, 5970-00-852-7487, 00-852-7487, 5970008527487, 008527487
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-852-7487 | 00227 ( INSULATOR, SUSPENSION ) |

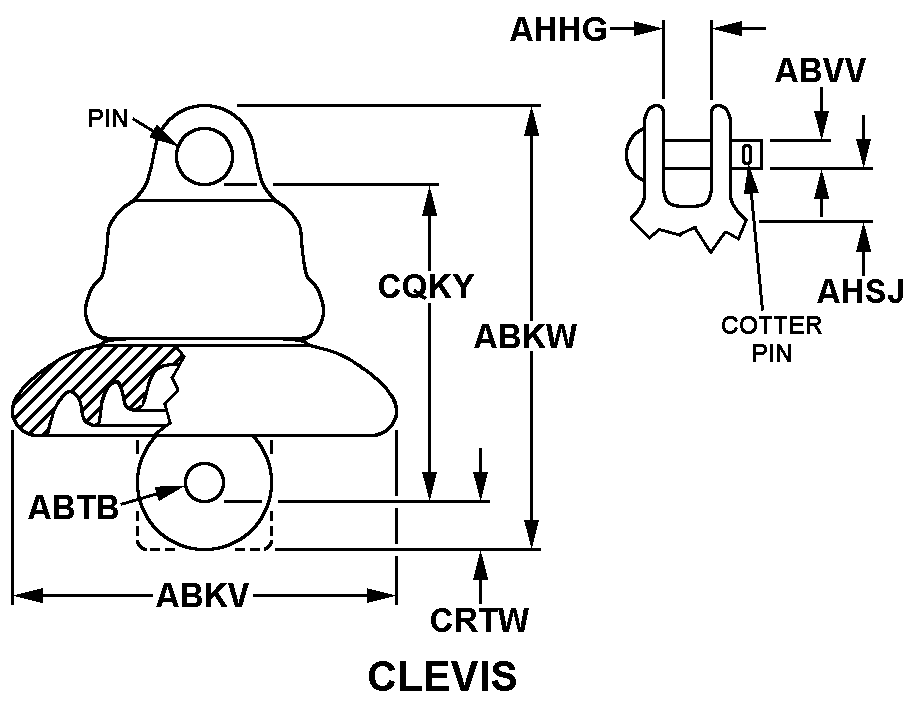

Drawings & Photos | NSN 5970-00-852-7487
Demand History | NSN 5970-00-852-7487
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-852-7487 | 2018-05-141 | 300 | US |
Cross Reference | NSN 5970-00-852-7487
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1060 | 83786 | JOSLYN CORP PINCO DIV |
| 20S840 | 75638 | NGK-LOCKE INC. |
| 32440 | 79911 | OHIO BRASS CO |
| 52-3 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| 66255 | 73569 | LA CHANCE LTD |
| 81022 | 73928 | KNOX PORCELAIN CORP |
| 8200 | 75539 | LAPP INSULATOR COMPANY LLC |
| 900 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
| C29-2CLASS52-3 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| L1060 | 74999 | JOSLYN CORP |
| NS1A3 | 36375 | MCGRAW-EDISON POWER SYSTEM DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-852-7487
Related Products | NSN 5970-00-852-7487
Technical Data | NSN 5970-00-852-7487
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | P1 CLEVIS |
| OUTSIDE DIAMETER | 10.000 INCHES NOMINAL |
| OVERALL HEIGHT | 5.750 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL GUM |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | BROWN |
Restrictions/Controls & Freight Information | NSN 5970-00-852-7487
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
