NSN 5970-00-699-2131 13351A, 00-699-2131, 006992131
Product Details | STRAIN INSULATOR
5970-00-699-2131 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Part Alternates: 13351A, 5970-00-699-2131, 00-699-2131, 5970006992131, 006992131
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-699-2131 | 00226 ( INSULATOR, STRAIN ) |
Drawings & Photos | NSN 5970-00-699-2131
Cross Reference | NSN 5970-00-699-2131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13351A | 55635 | DAYTON-GRANGER INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-699-2131
Technical Data | NSN 5970-00-699-2131
| Characteristic | Specifications |
|---|---|

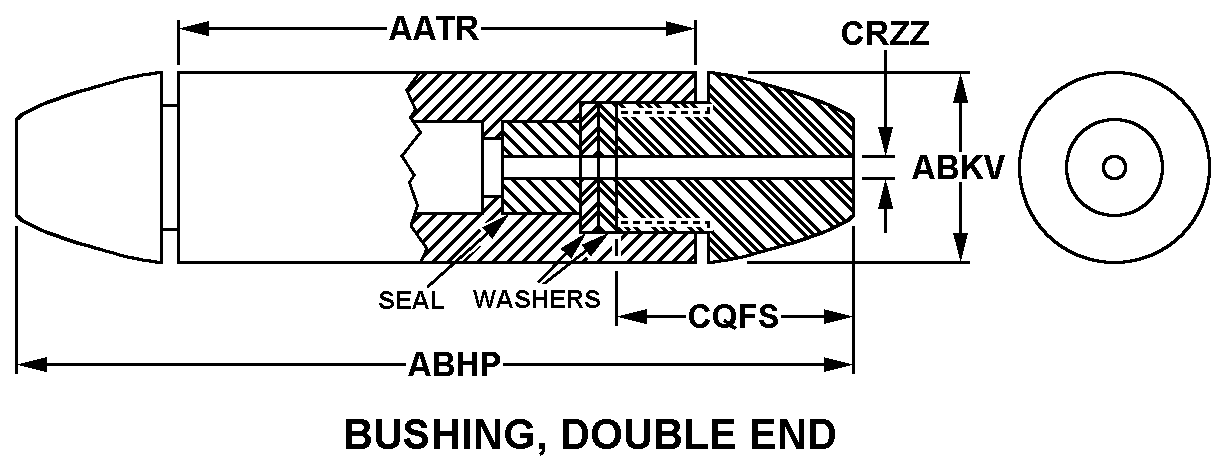

| STYLE DESIGNATOR | N30 BUSHING, DOUBLE END |
| SHANK LENGTH | 2.000 INCHES NOMINAL |
| OVERALL LENGTH | 4.656 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.668 INCHES NOMINAL |
| FIRST CAP HEIGHT | 1.328 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.156 INCHES NOMINAL |
| MATERIAL AND LOCATION | BASE CERAMIC AND CAP ALUMINUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5970-00-699-2131
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103780 | INSULATORS STRAIN NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-699-2131
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
