Product Details | PLATE INSULATOR
5970-00-669-9303 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 16442, 5970-00-669-9303, 00-669-9303, 5970006699303, 006699303
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-669-9303 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-669-9303
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-669-9303
Technical Data | NSN 5970-00-669-9303
| Characteristic | Specifications |
|---|---|

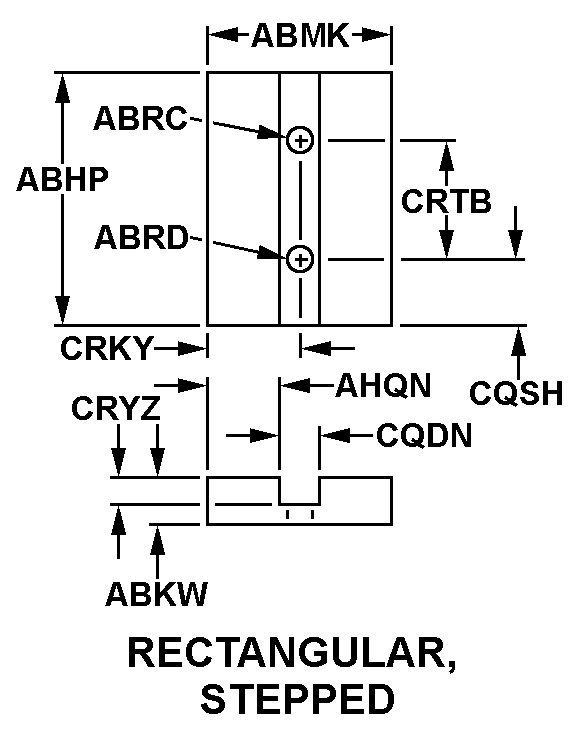

| STYLE DESIGNATOR | K87 RECTANGULAR, STEPPED |
| OVERALL LENGTH | 2.188 INCHES NOMINAL |
| OVERALL HEIGHT | 0.234 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.266 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.266 INCHES NOMINAL |
| FIRST LEG WIDTH | 0.125 INCHES NOMINAL |
| FIRST SLOT WIDTH | 0.500 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.344 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.250 INCHES NOMINAL |
| THIRD HOLE SPACING | 1.500 INCHES NOMINAL |
| FIRST SLOT DEPTH | 0.109 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, GRADE C, LEECE-NEVILLE CO |
| IDENTIFICATION CODE COLOR | BROWN |
