NSN 5970-00-644-3047 NL422W19011, NL422W19-011, MIL-I-23264/3
Product Details | STANDOFF INSULATOR
5970-00-644-3047 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: NL422W19011, NL422W19-011, MIL-I-23264/3, MILI232643, 25279, 5970-00-644-3047, 00-644-3047, 5970006443047, 006443047
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-644-3047 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-644-3047
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-644-3047
Technical Data | NSN 5970-00-644-3047
| Characteristic | Specifications |
|---|---|

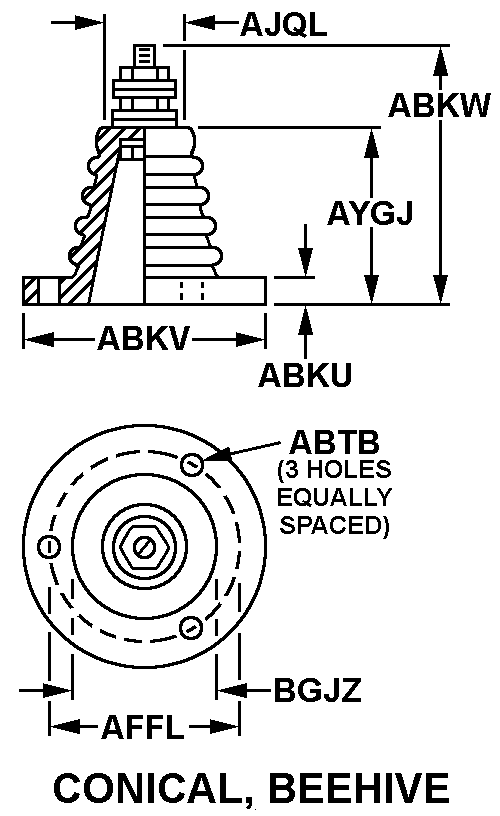

| STYLE DESIGNATOR | M20 CONICAL, BEEHIVE |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 1.688 INCHES NOMINAL |
| TOP DIAMETER | 0.781 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 1.375 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 0.844 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC, MIL-I-10, GRADE L422 |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| SPECIAL FEATURES | DOES NOT CONTAIN A CENTER STUD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-23264/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NL422W19-011 |
