NSN 5970-00-642-9739 2052721, 2052751, 2052751-10
Product Details | BUSHING INSULATOR
5970-00-642-9739 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 2052721, 2052751, 2052751-10, 647751, 5970-00-642-9739, 00-642-9739, 5970006429739, 006429739, 205275110
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-642-9739 | 18301 ( INSULATOR, BUSHING ) |

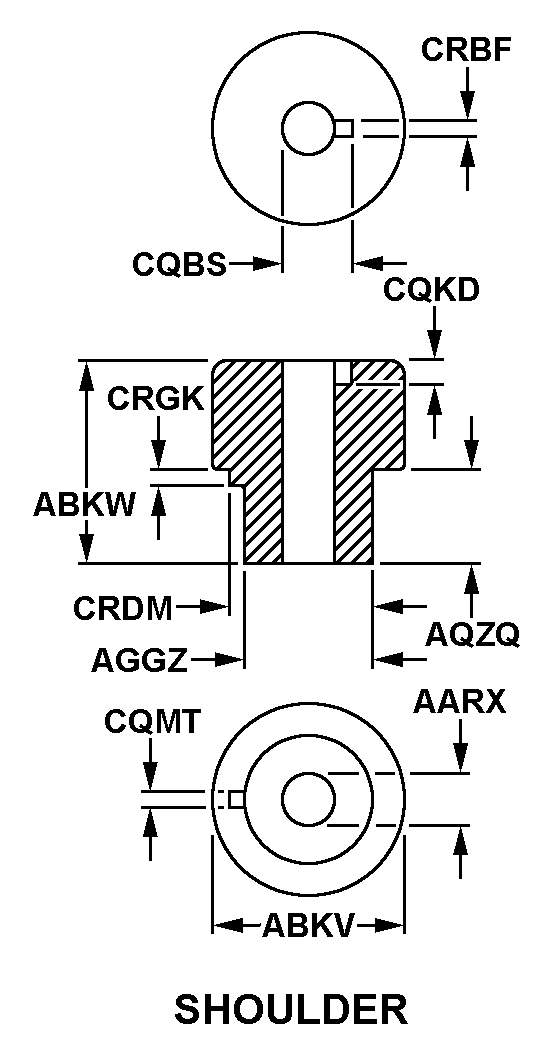

Drawings & Photos | NSN 5970-00-642-9739
Cross Reference | NSN 5970-00-642-9739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2052721 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 2052751 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 2052751 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 2052751-10 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 2052751-10 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 2052751-10 | 57187 | GULTON-STATHAM TRANSDUCERS INC |
| 647751 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-642-9739
Technical Data | NSN 5970-00-642-9739
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C49 SHOULDER |
| INSIDE DIAMETER | 0.144 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.328 INCHES NOMINAL |
| OVERALL HEIGHT | 0.188 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.248 INCHES NOMINAL |
| SHANK HEIGHT | 0.141 INCHES NOMINAL |
| FIRST KEY WIDTH | ANY ACCEPTABLE |
| DISTANCE FROM FLANGE TO WIRE GROOVE EDGE | ANY ACCEPTABLE |
| SECOND KEY THICKNESS | ANY ACCEPTABLE |
| FIRST KEY THICKNESS | ANY ACCEPTABLE |
| SECOND KEY WIDTH | ANY ACCEPTABLE |
| SECOND KEY DEPTH | ANY ACCEPTABLE |
| MATERIAL AND LOCATION | OVERALL POLYAMIDE NYLON |
Restrictions/Controls & Freight Information | NSN 5970-00-642-9739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157320 | PLASTIC/RUBBER ARTICLE/ETC VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-642-9739
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
