Product Details | BUSHING INSULATOR
5970-00-583-1559 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 8202568, 5970-00-583-1559, 00-583-1559, 5970005831559, 005831559
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-583-1559 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-583-1559
Demand History | NSN 5970-00-583-1559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-583-1559 | 2012-04-106 | 3 | DIBBS |
| 5970-00-583-1559 | 2011-11-315 | 2 | DIBBS |
| 5970-00-583-1559 | 2011-11-311 | 2 | DIBBS |
| 5970-00-583-1559 | 2011-04-108 | 6 | DIBBS |
| 5970-00-583-1559 | 2011-03-85 | 2 | DIBBS |
| 5970-00-583-1559 | 2010-07-206 | 6 | DIBBS |
| 5970-00-583-1559 | 2010-05-140 | 2 | DIBBS |
Cross Reference | NSN 5970-00-583-1559
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8202568 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-583-1559
Related Products | NSN 5970-00-583-1559
Technical Data | NSN 5970-00-583-1559
| Characteristic | Specifications |
|---|---|

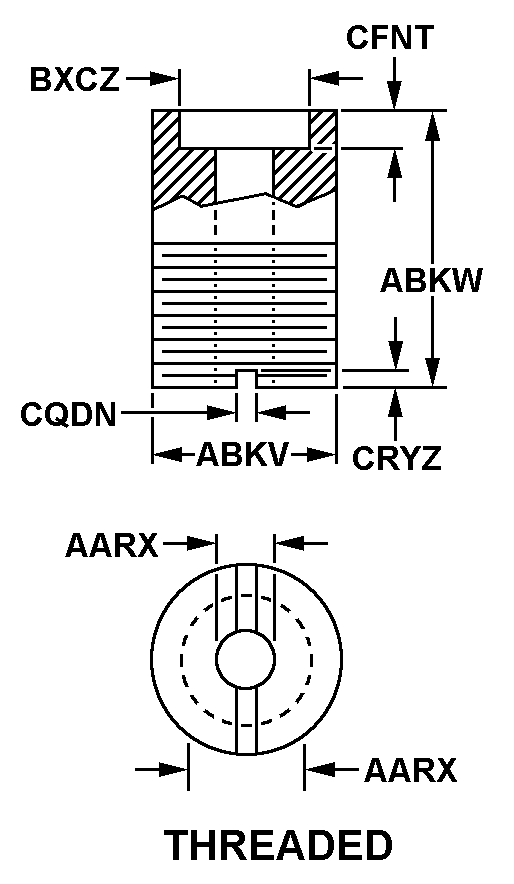

| STYLE DESIGNATOR | C12 THREADED |
| INSIDE DIAMETER | 0.126 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.300 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.126 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.100 INCHES NOMINAL |
| FIRST SLOT WIDTH | 0.062 INCHES NOMINAL |
| FIRST SLOT DEPTH | 0.062 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, PHENOLIC, MIL-M-14, TYPE MFI-20 |
| IDENTIFICATION CODE COLOR | BLACK OR GRAY |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | SHANKUNS |
| SCREW THREAD DIAMETER AND LOCATION | 0.344 SHANK INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 36 SHANK |
| THREAD CLASS AND LOCATION | 2A SHANK |
| THREAD LENGTH AND LOCATION | 0.312 SHANK INCHES NOMINAL |
