NSN 5970-00-575-9773 7132939, 7132939-01, 00-575-9773

Product Details | BUSHING INSULATOR

5970-00-575-9773 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.

Part Alternates: 7132939, 7132939-01, 5970-00-575-9773, 00-575-9773, 5970005759773, 005759773, 713293901

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	11 DEC 1974	00-575-9773	18301 ( INSULATOR, BUSHING )

Drawings & Photos | NSN 5970-00-575-9773

Part Number	Request Date	QTY	Origin
5970-00-575-9773	2024-09-254	486	DIBBS
5970-00-575-9773	2024-08-226	600	US
5970-00-575-9773	2024-06-178	84	United States
5970-00-575-9773	2024-06-178	128	United States
5970-00-575-9773	2023-09-248	163	United States
5970-00-575-9773	2023-05-121	461	DIBBS
713293901	2021-10-288	100	United States
5970-00-575-9773	2021-01-24	1237	DIBBS
5970-00-575-9773	2020-10-281	1224	DIBBS
713293901	2019-09-252	15	us
7132939-01	2019-09-252	15
5970-00-575-9773	2016-02-49	1768	DIBBS
5970-00-575-9773	2012-12-352	1800	DIBBS
5970-00-575-9773	2012-12-352	2000	DIBBS
5970-00-575-9773	2011-11-321	1860	DIBBS
5970-00-575-9773	2011-09-264	1860	DIBBS
5970-00-575-9773	2010-06-168	1383	DIBBS

Cross Reference | NSN 5970-00-575-9773

Part Number	Cage Code	Manufacturer
7132939	98752	WARNER ROBINS AIR LOGISTICS CENTER
7132939-01	98752	WARNER ROBINS AIR LOGISTICS CENTER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-00-575-9773

Compare

Related Products | NSN 5970-00-575-9773

5970-00-576-9671, 5970-00-577-0854, 5970-00-577-0948, 5970-00-577-0995, 5970-00-577-1446

Technical Data | NSN 5970-00-575-9773

Characteristic	Specifications

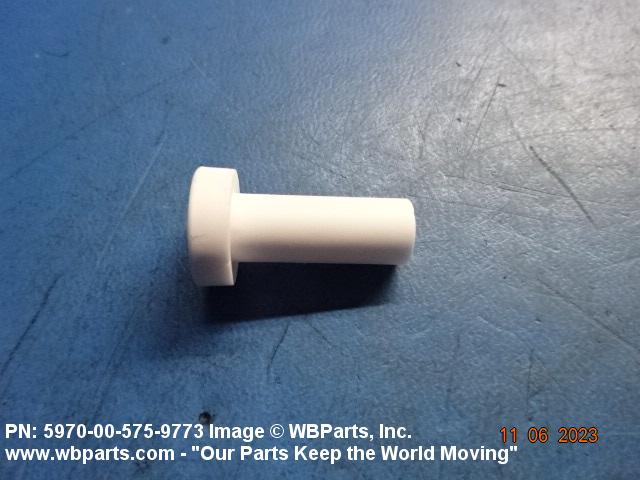

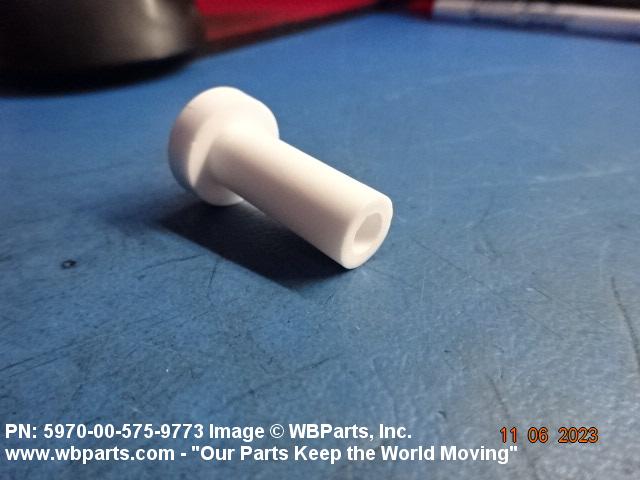

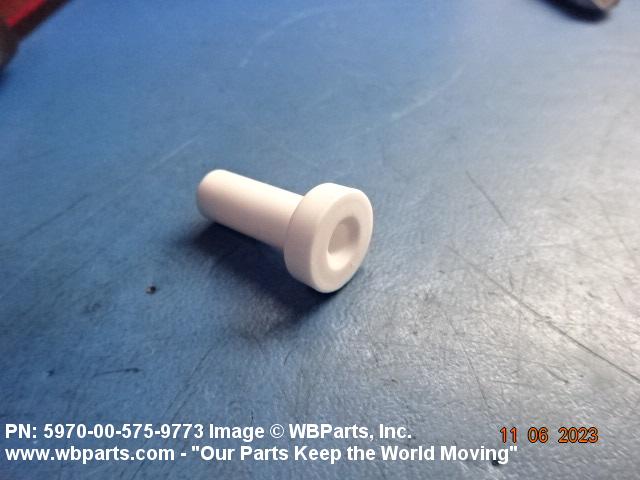

STYLE DESIGNATOR	C33 SHOULDER

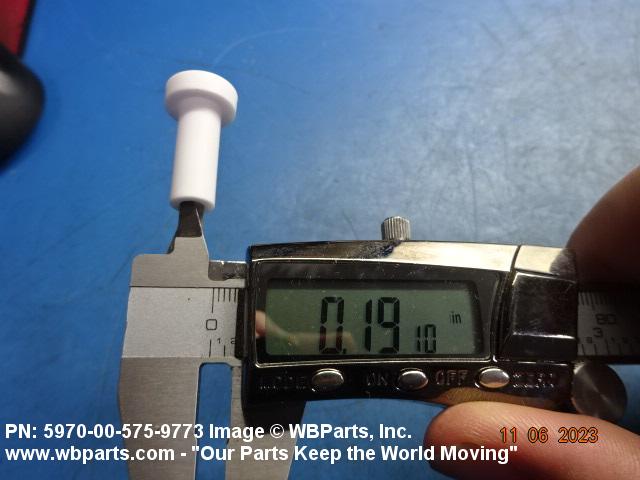

INSIDE DIAMETER	0.191 INCHES MINIMUM AND 0.197 INCHES MAXIMUM
COUNTERSINK ANGLE IN DEG	90.0

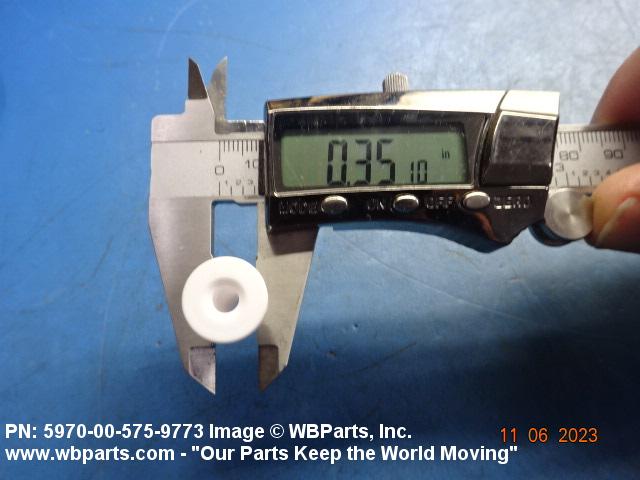

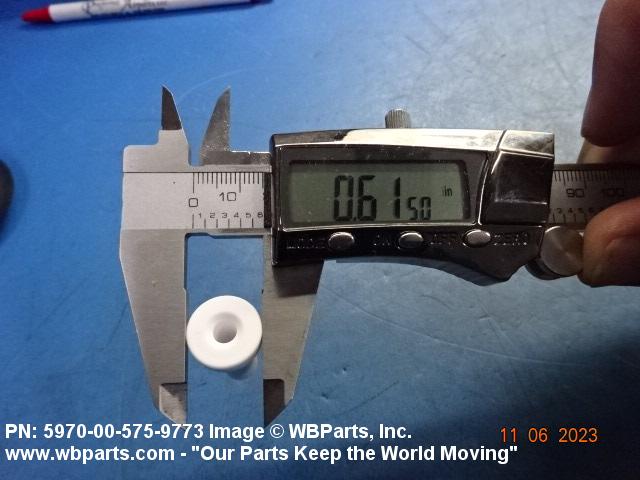

OUTSIDE DIAMETER	0.610 INCHES NOMINAL

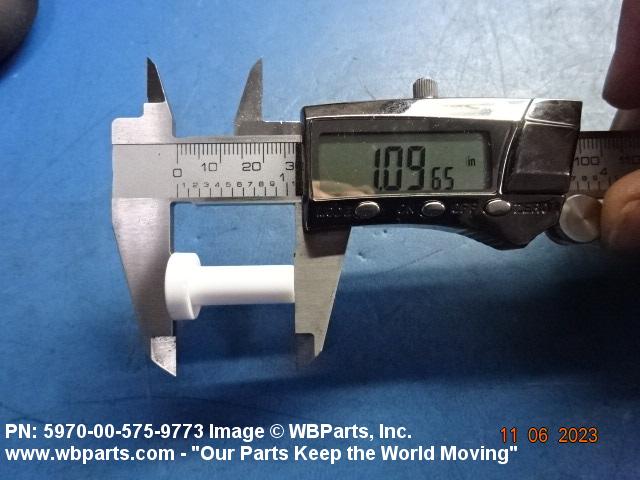

OVERALL HEIGHT	1.094 INCHES NOMINAL

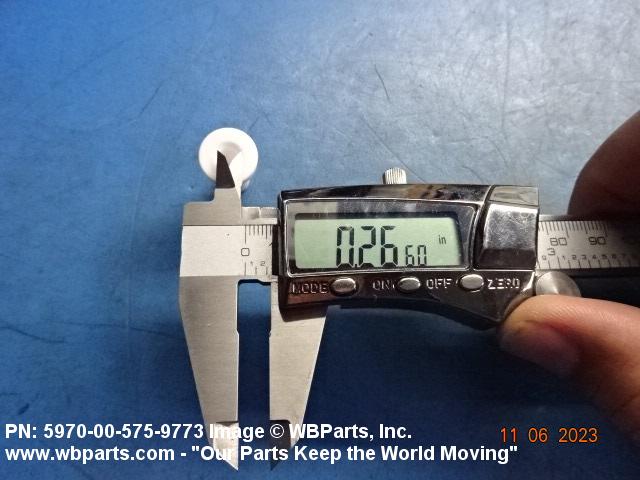

COUNTERSINK MAJOR DIAMETER	0.270 INCHES NOMINAL
SHANK OUTSIDE DIAMETER	0.355 INCHES NOMINAL

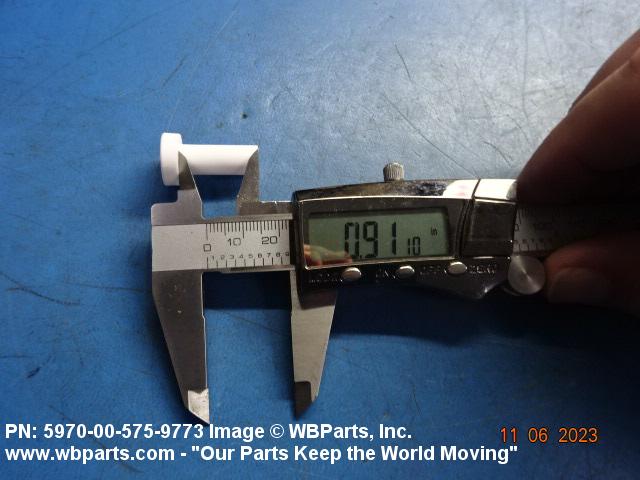

SHANK HEIGHT	0.906 INCHES NOMINAL
