NSN 5970-00-411-2904 410R168G01, 410R168H01, 00-411-2904
Product Details | PLATE INSULATOR
5970-00-411-2904 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 410R168G01, 410R168H01, 5970-00-411-2904, 00-411-2904, 5970004112904, 004112904
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 AUG 1969 | 00-411-2904 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-411-2904
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-411-2904
Technical Data | NSN 5970-00-411-2904
| Characteristic | Specifications |
|---|---|

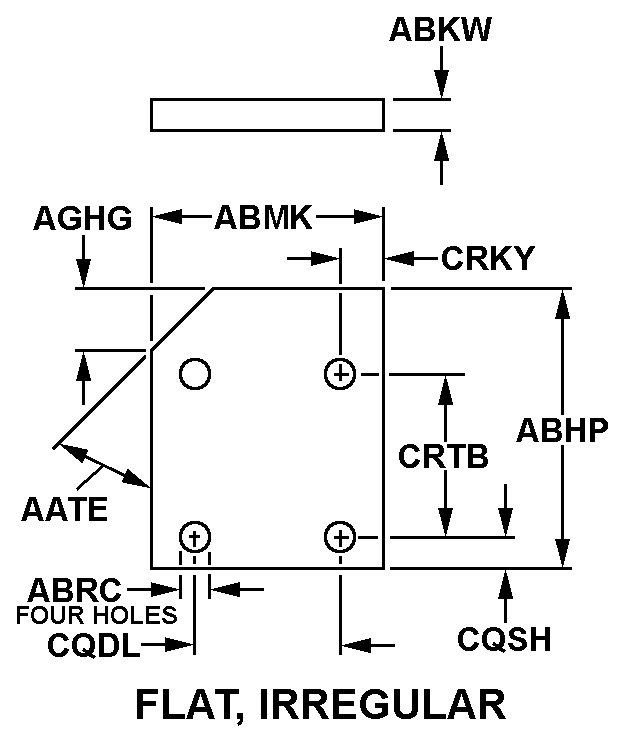

| STYLE DESIGNATOR | K19 FLAT, IRREGULAR |
| CHAMFER ANGLE IN DEG | 45.0 |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.010 INCHES NOMINAL |
| OVERALL WIDTH | 1.890 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.248 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CHAMFER DEPTH | 0.310 INCHES NOMINAL |
| FOURTH HOLE SPACING | 1.280 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.390 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.360 INCHES NOMINAL |
| THIRD HOLE SPACING | 1.220 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, TEFLON, 44791KE, WESTINGHOUSE ELECTRIC CORP |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 410R168H01 |
