NSN 5970-00-369-6830 K54J710, 22308, 00-369-6830
Product Details | PLATE INSULATOR
5970-00-369-6830 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: K54J710, 22308, 5970-00-369-6830, 00-369-6830, 5970003696830, 003696830
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-369-6830 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-369-6830
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-369-6830
Technical Data | NSN 5970-00-369-6830
| Characteristic | Specifications |
|---|---|

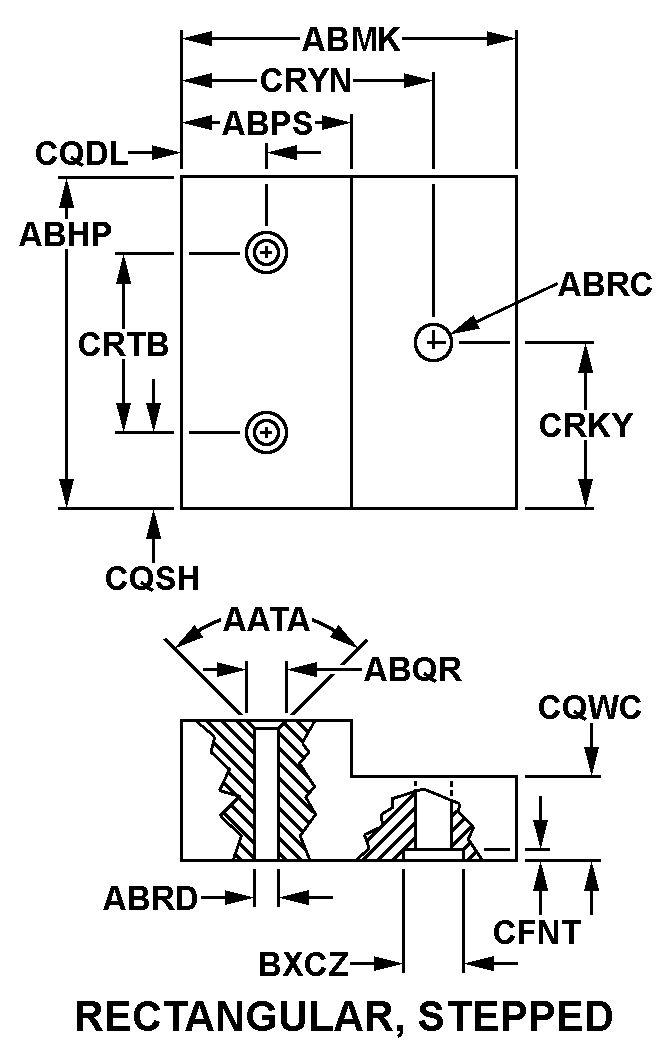

| STYLE DESIGNATOR | K93 RECTANGULAR, STEPPED |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.562 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.206 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.180 INCHES NOMINAL |
| FIRST STEP HEIGHT | 0.500 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.438 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.250 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.562 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.250 INCHES NOMINAL |
| SECOND STEP HEIGHT | 0.406 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.625 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.750 INCHES NOMINAL |
| FIRST SLOT DEPTH | 0.875 INCHES NOMINAL |
| IDENTIFICATION CODE COLOR | WHITE |
| SPECIAL FEATURES | COUNTERBORE 0.180 IN. DIA HOLES TO 0.375 IN. DIA BY 0.094 IN. DEEP; GLAZE ALL SURFACES EXCEPT BOTTOM |
| MANUFACTURERS CODE | 24446 |
| DESIGN CONTROL REFERENCE | K54J710 |
Restrictions/Controls & Freight Information | NSN 5970-00-369-6830
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | T | 55 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
