NSN 5970-00-357-7375 DF7A, 00-357-7375, 003577375
Product Details | PLATE INSULATOR
5970-00-357-7375 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: DF7A, 5970-00-357-7375, 00-357-7375, 5970003577375, 003577375
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 FEB 1974 | 00-357-7375 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-357-7375
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-357-7375
Technical Data | NSN 5970-00-357-7375
| Characteristic | Specifications |
|---|---|

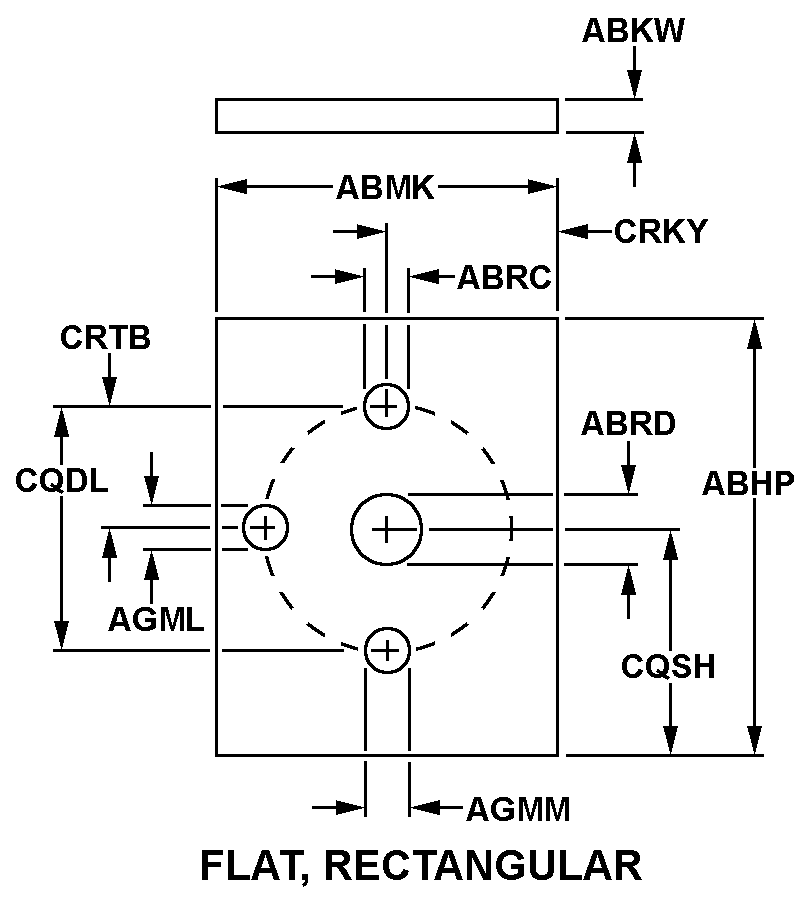

| STYLE DESIGNATOR | K10 FLAT, RECTANGULAR |
| OVERALL LENGTH | 1.230 INCHES MINIMUM AND 1.270 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.002 INCHES MINIMUM AND 0.004 INCHES MAXIMUM |
| OVERALL WIDTH | 1.230 INCHES MINIMUM AND 1.270 INCHES MAXIMUM |
| FIRST HOLE DIAMETER | 0.156 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.198 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
| THIRD HOLE DIAMETER | 0.136 INCHES MINIMUM AND 0.146 INCHES MAXIMUM |
| FOURTH HOLE DIAMETER | 0.156 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.680 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |
| FIRST HOLE SPACING | 0.620 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| SECOND HOLE SPACING | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| THIRD HOLE SPACING | 0.340 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| MATERIAL AND LOCATION | OVERALL MICA |
Restrictions/Controls & Freight Information | NSN 5970-00-357-7375
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-357-7375
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
