Product Details | STANDOFF INSULATOR
5970-00-356-3688 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: J089, 5970-00-356-3688, 00-356-3688, 5970003563688, 003563688
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-356-3688 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-356-3688
Cross Reference | NSN 5970-00-356-3688
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J089 | 74999 | JOSLYN CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-356-3688
Related Products | NSN 5970-00-356-3688
Technical Data | NSN 5970-00-356-3688
| Characteristic | Specifications |
|---|---|

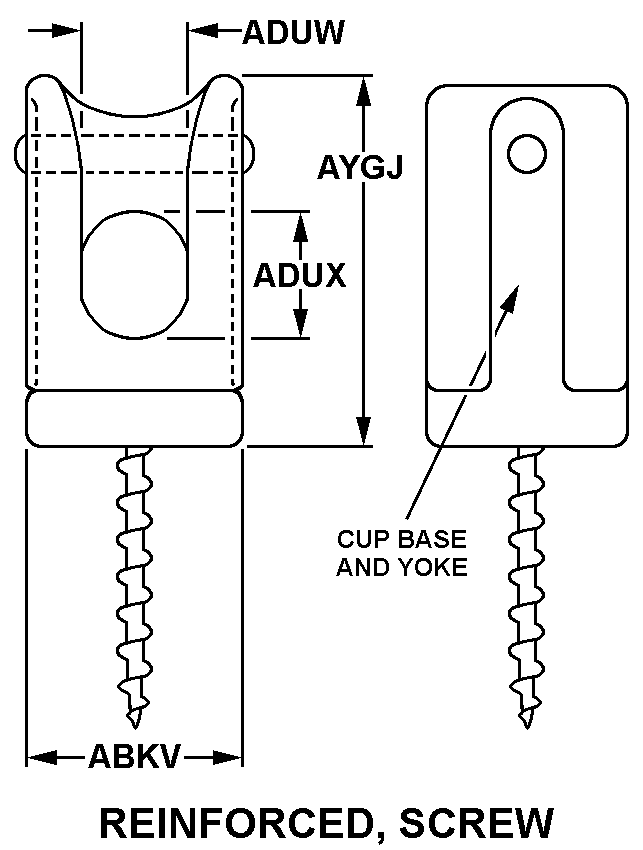

| STYLE DESIGNATOR | M45 REINFORCED, SCREW |
| OUTSIDE DIAMETER | 1.969 INCHES NOMINAL |
| CENTER HOLE LENGTH | 0.875 INCHES NOMINAL |
| CENTER HOLE WIDTH | 1.000 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 3.125 INCHES NOMINAL |
| MATERIAL AND LOCATION | ELECTRICAL TERMINATION PORCELAIN SHANK STEEL |
| SURFACE TREATMENT AND LOCATION | SHANK GALVANIZED |
| IDENTIFICATION CODE COLOR | BROWN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 WOOD SCREW |
| WOOD SCREW SIZE | 22 |
| MANUFACTURERS CODE | 74999 |
| DESIGN CONTROL REFERENCE | J089 |
