NSN 5970-00-351-6090 PL0007, 00-351-6090, 003516090
Product Details | BUSHING INSULATOR
5970-00-351-6090 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: PL0007, 5970-00-351-6090, 00-351-6090, 5970003516090, 003516090
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-351-6090 | 18301 ( INSULATOR, BUSHING ) |
Drawings & Photos | NSN 5970-00-351-6090
Cross Reference | NSN 5970-00-351-6090
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PL0007 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-351-6090
Technical Data | NSN 5970-00-351-6090
| Characteristic | Specifications |
|---|---|

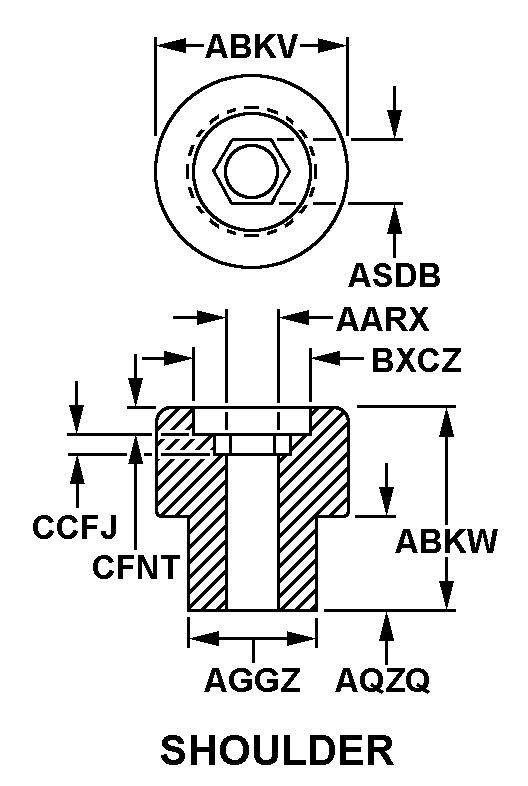

| STYLE DESIGNATOR | C46 SHOULDER |
| INSIDE DIAMETER | 0.261 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SHANK HEIGHT | 0.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.328 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.438 INCHES NOMINAL |
| SECOND COUNTERBORE DEPTH | 0.070 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.370 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, MIL-I-10, GRADE L221 |
| IDENTIFICATION CODE COLOR | WHITE |
| SPECIAL FEATURES | GLAZED FINISH |
Restrictions/Controls & Freight Information | NSN 5970-00-351-6090
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-351-6090
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
