NSN 5970-00-350-4742 5073031, 507303-1, 00-350-4742
Product Details | DISK INSULATOR

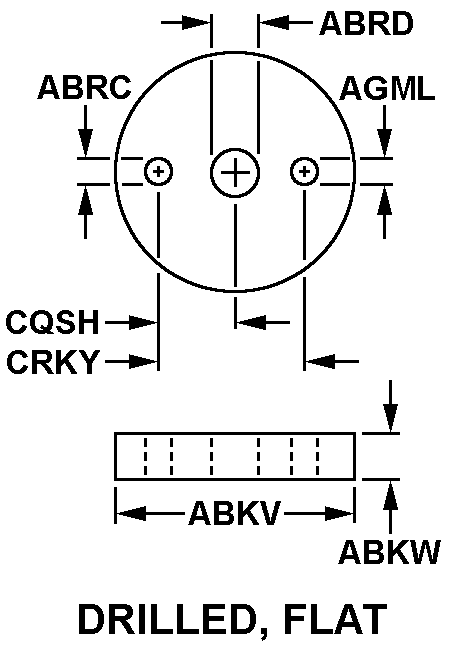

5970-00-350-4742 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Part Alternates: 5073031, 507303-1, 5970-00-350-4742, 00-350-4742, 5970003504742, 003504742
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 MAR 1970 | 00-350-4742 | 18295 ( INSULATOR, DISK ) |
Drawings & Photos | NSN 5970-00-350-4742
Demand History | NSN 5970-00-350-4742
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-350-4742 | 2021-03-83 | 428 | DIBBS |
| 507303-1 | 2019-11-329 | 491 | DIBBS |
| 507303-1 | 2019-11-317 | 491 | DIBBS |
| 5970-00-350-4742 | 2013-07-189 | 821 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-350-4742
Related Products | NSN 5970-00-350-4742
Technical Data | NSN 5970-00-350-4742
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | E14 DRILLED, FLAT |
| OUTSIDE DIAMETER | 1.620 INCHES NOMINAL |
| OVERALL HEIGHT | 0.005 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.156 INCHES NOMINAL |
| THIRD HOLE DIAMETER | 0.125 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.460 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.920 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC,POLYIMIDE FILM,KAPTON TYPE H,E I DUPONT DE NEMOURS AND CO,INC |
Restrictions/Controls & Freight Information | NSN 5970-00-350-4742
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
