NSN 5970-00-335-4985 2602189002, 2602189-002, 26021892
Product Details | PLATE INSULATOR
5970-00-335-4985 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 2602189002, 2602189-002, 26021892, 2602189-2, 5970-00-335-4985, 00-335-4985, 5970003354985, 003354985
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 DEC 1973 | 00-335-4985 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-335-4985
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-335-4985
Technical Data | NSN 5970-00-335-4985
| Characteristic | Specifications |
|---|---|

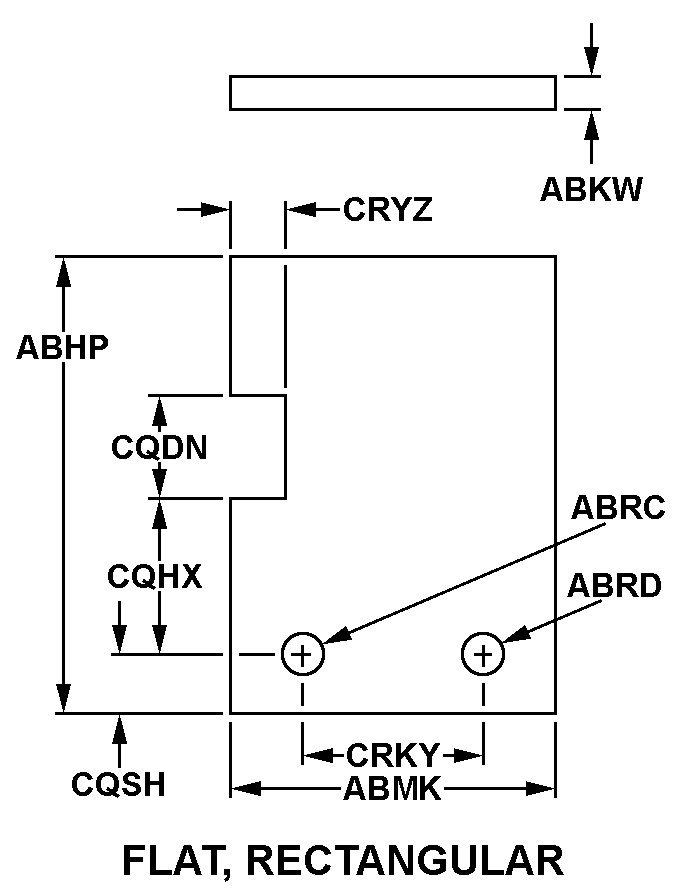

| STYLE DESIGNATOR | K50 FLAT, RECTANGULAR |
| OVERALL LENGTH | 4.320 INCHES NOMINAL |
| OVERALL HEIGHT | 0.007 INCHES NOMINAL |
| OVERALL WIDTH | 3.690 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.400 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.400 INCHES NOMINAL |
| THIRD HOLE DIAMETER | 0.400 INCHES NOMINAL |
| FIRST SLOT WIDTH | 0.300 INCHES NOMINAL |
| FIRST CENTER DISTANCE | 1.075 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.830 INCHES NOMINAL |
| SECOND HOLE SPACING | 1.173 INCHES NOMINAL |
| THIRD HOLE SPACING | 1.565 INCHES NOMINAL |
| FIRST SLOT DEPTH | 0.170 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, POLYETHYLENE, E I DUPONT DE NEMOURS AND CO INC |
| SPECIAL FEATURES | 2 SLOTS 0.400 IN W 0.480 IN DEEP,1ST CORNER CUT 0.310 IN L 0.300 IN W,2ND CORNER CUT 0.370 IN L 0.300 IN W,3RD CORNER CUT 0.200 IN L 0.190 IN W |
