Product Details | DISK INSULATOR
5970-00-296-9983 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Part Alternates: P18D3065, 5970-00-296-9983, 00-296-9983, 5970002969983, 002969983
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-9983 | 18295 ( INSULATOR, DISK ) |
Drawings & Photos | NSN 5970-00-296-9983
Cross Reference | NSN 5970-00-296-9983
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P18D3065 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-296-9983
Technical Data | NSN 5970-00-296-9983
| Characteristic | Specifications |
|---|---|

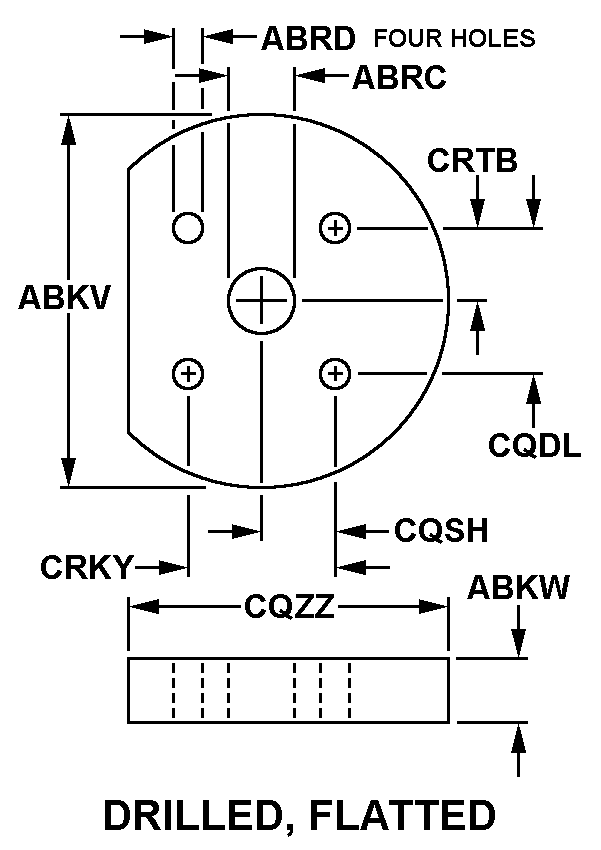

| STYLE DESIGNATOR | E17 DRILLED, FLATTED |
