Product Details | STANDOFF INSULATOR
5970-00-296-3226 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: M7426960SUB0, 5970-00-296-3226, 00-296-3226, 5970002963226, 002963226
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-3226 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-296-3226
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-296-3226
Technical Data | NSN 5970-00-296-3226
| Characteristic | Specifications |
|---|---|

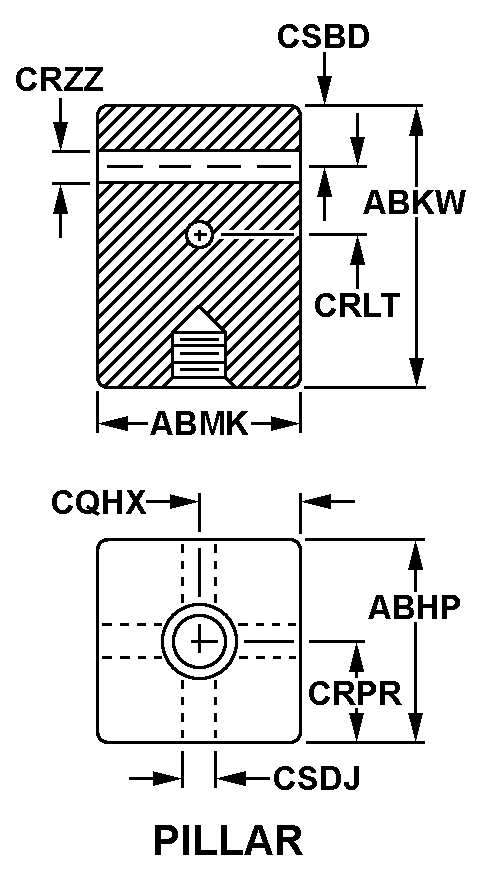

| STYLE DESIGNATOR | M12 PILLAR |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.781 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| FIRST CENTER DISTANCE | 0.500 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 3.031 INCHES NOMINAL |
| SECOND CENTER DISTANCE | 0.500 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.252 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 0.375 INCHES NOMINAL |
| SECOND WIRE HOLE DIAMETER | 0.252 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| SPECIAL FEATURES | STYLE M12 EXCEPT W/O THD HOLE IN END |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | M7426960SUB0 |
