NSN 5970-00-295-8759 5054880002, 505-4880-002, 00-295-8759
Product Details | PLATE INSULATOR
5970-00-295-8759 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 5054880002, 505-4880-002, 5970-00-295-8759, 00-295-8759, 5970002958759, 002958759
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-295-8759 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-295-8759
Cross Reference | NSN 5970-00-295-8759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 505-4880-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-295-8759
Technical Data | NSN 5970-00-295-8759
| Characteristic | Specifications |
|---|---|

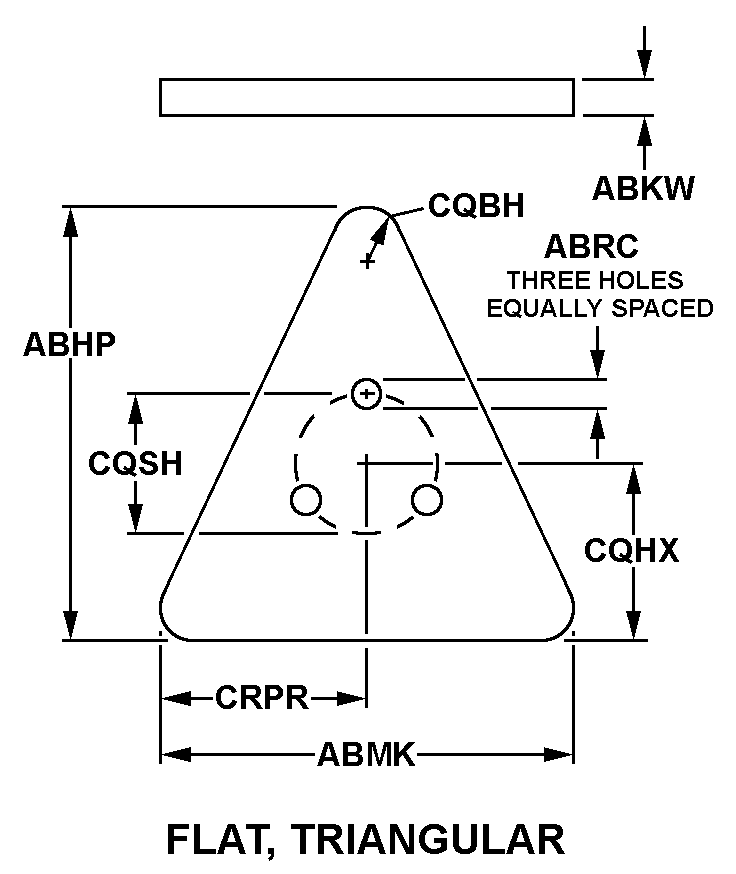

| STYLE DESIGNATOR | K44 FLAT, TRIANGULAR |
| OVERALL LENGTH | 0.662 INCHES NOMINAL |
| OVERALL HEIGHT | 0.093 INCHES NOMINAL |
| OVERALL WIDTH | 0.765 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.140 INCHES NOMINAL |
| FIRST END RADIUS | ANY ACCEPTABLE |
| FIRST CENTER DISTANCE | 0.331 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.686 INCHES NOMINAL |
| SECOND CENTER DISTANCE | 0.382 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 505-4880-002 |
