NSN 5970-00-285-0572 F110141, WEB110141, 110141
Product Details | CLEAT INSULATOR
5970-00-285-0572 An insulator of a generally rectangular shape which is designed to be attached to a rigid structure. It consists of two separate parts. For items of a generally cylindrical shape, see INSULATOR, KNOB.
Part Alternates: F110141, WEB110141, 110141, 4128P11, 4506P11, 5720074, 572-0074, 6G110141, 6J936511, 6J936-511, 6V1141, 7196, 7-19-6, 8A3, 5970-00-285-0572, 00-285-0572, 5970002850572, 002850572
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-285-0572 | 18282 ( INSULATOR, CLEAT ) |

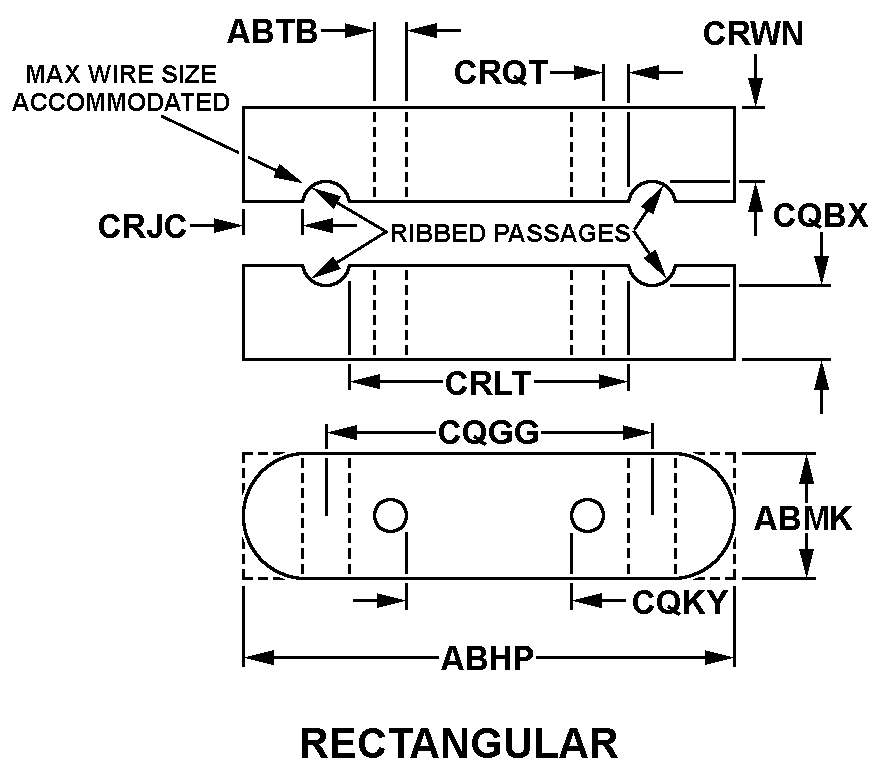

Drawings & Photos | NSN 5970-00-285-0572
Demand History | NSN 5970-00-285-0572
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7196 | 2021-01-05 | 1 | AT |
| 7196 | 2017-04-109 | 4 | United States |
| 7196 | 2015-08-233 | 3 | Malaysia |
Cross Reference | NSN 5970-00-285-0572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110141 | 02680 | PLUS COMPUTING MACHINES INC |
| 110141 | 02860 | AMERICAN SEATING COMPANY |
| 110141 | 08661 | BRILL JOHN G CO |
| 110141 | 23705 | FRUEHAUF CORP |
| 110141 | 28294 | HERMAN BODY CO THE |
| 110141 | 33705 | KINGHAM TRAILER CO |
| 110141 | 40670 | MILLER TRAILERS INC |
| 110141 | 44950 | ONEIDA LTD SILVERSMITHS |
| 110141 | 52793 | SAGINAW PRODUCTS CORPORATION DBA CIGNYS |
| 110141 | 56721 | PREMIER CENTRAL TRUCK BODY |
| 110141 | 57228 | PROFESSIONAL VEHICLE DIV OF WAYNE CORP |
| 110141 | 58141 | STRICK TRAILER CO |
| 110141 | 58440 | SUN TOOL AND MACHINE CO |
| 110141 | 58540 | SUPERIOR TRAILER MFG CO |
| 110141 | 60528 | TRAILMOBILE INC SUB OF THE PULLMAN CO |
| 110141 | 60579 | TRAVEL CAR CORP |
| 110141 | 62508 | UTILITY TRAILER MFG CO |
| 110141 | 63810 | WARNER ELECTRIC BRAKE AND CLUTCH CO HQ |
| 110141 | 66155 | PORTA DRILL INC |
| 110141 | 70940 | ENTERPRISE FABRICATORS INC |
| 110141 | 71510 | CAROLINA TRUCK AND TRAILER CO |
| 110141 | 72260 | CORBITT CO INC |
| 110141 | 72741 | DORMAN PRODUCTS, INC. DBA MOTORMITE DIVISION |
| 110141 | 73265 | FONTAINE TRUCK EQUIPMENT CO SUB OF ALTAMIL CORP |
| 110141 | 74400 | HOBBS CORP |
| 110141 | 75460 | KRIEGER STEEL SECTIONS INC |
| 110141 | 80328 | DORSEY TRAILERS INC |
| 110141 | 82646 | ALLIED PRODUCTS CORP LOADCRAFT DIV |
| 110141 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 4128P11 | 27618 | TAYLOR MACHINE WORKS, INC. |
| 4506P11 | 27618 | TAYLOR MACHINE WORKS, INC. |
| 572-0074 | 63810 | WARNER ELECTRIC BRAKE AND CLUTCH CO HQ |
| 6G110141 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 6J936-511 | 1DF03 | ABM EQUIPMENT & SUPPLY, LLC DBA HIGHWAY MANUFACTURING |
| 6V1141 | 57345 | AEROLLOY INC |
| 7-19-6 | 60528 | TRAILMOBILE INC SUB OF THE PULLMAN CO |
| 8A3 | 57228 | PROFESSIONAL VEHICLE DIV OF WAYNE CORP |
| F110141 | 23705 | FRUEHAUF CORP |
| WEB110141 | 23705 | FRUEHAUF CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-285-0572
Related Products | NSN 5970-00-285-0572
Technical Data | NSN 5970-00-285-0572
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D2 RECTANGULAR |
| OVERALL LENGTH | 2.188 INCHES NOMINAL |
| OVERALL WIDTH | 0.687 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.266 INCHES NOMINAL |
| SECOND DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.312 INCHES NOMINAL |
| FIRST DISTANCE BETWEEN CONDUCTOR GROOVES | 1.250 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 1.250 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR GROOVE TO INSULATOR END | ANY ACCEPTABLE |
| CONDUCTOR SEPARATION DISTANCE | ANY ACCEPTABLE |
| DISTANCE BETWEEN CONDUCTOR GROOVE AND MOUNTING HOLE | ANY ACCEPTABLE |
| FIRST DISTANCE FROM CONDUCTOR SLOT TO OPPOSITE SURFACE | 0.312 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5970-00-285-0572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5970-00-285-0572
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
