NSN 5970-00-280-8871 BL706656, 1736996, 24114D 4-5/8
Product Details | STANDOFF INSULATOR
5970-00-280-8871 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: BL706656, 1736996, 24114D 4-5/8, 24114D458, 5970-00-280-8871, 00-280-8871, 5970002808871, 002808871
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-8871 | 00225 ( INSULATOR, STANDOFF ) |

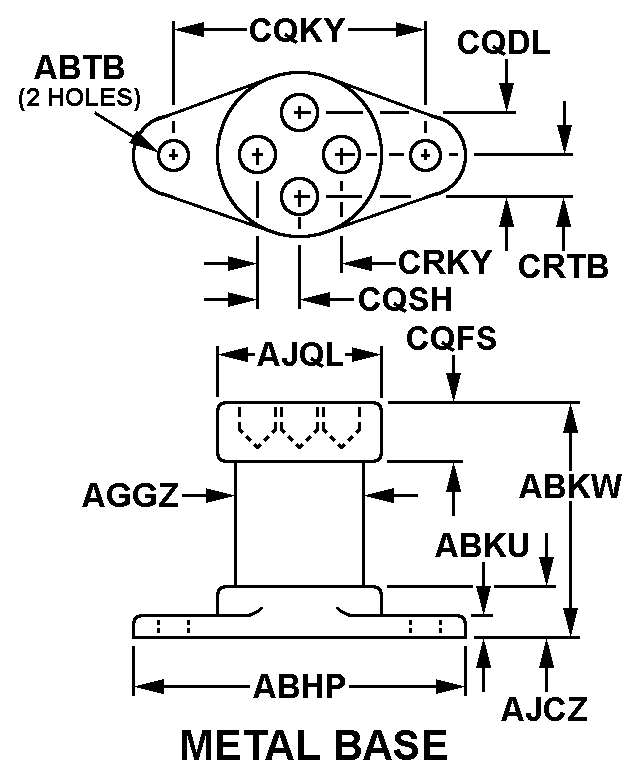

Drawings & Photos | NSN 5970-00-280-8871
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-280-8871
Technical Data | NSN 5970-00-280-8871
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M31 METAL BASE |
| OVERALL LENGTH | 3.312 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 4.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| BASE HEIGHT | 0.688 INCHES NOMINAL |
| TOP DIAMETER | 1.625 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.812 INCHES NOMINAL |
| FIRST CAP HEIGHT | 1.062 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 2.625 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.406 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.812 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.406 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | CAP UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.250 CAP INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 20 CAP |
| THREAD CLASS AND LOCATION | 2B CAP |
| THREAD LENGTH AND LOCATION | 0.375 CAP INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5970-00-280-8871
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5970-00-280-8871
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
