Product Details | STANDOFF INSULATOR
5970-00-280-8294 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: NS5W0540, JANI8, 5970-00-280-8294, 00-280-8294, 5970002808294, 002808294
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-8294 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-280-8294
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-280-8294
Related Products | NSN 5970-00-280-8294
Technical Data | NSN 5970-00-280-8294
| Characteristic | Specifications |
|---|---|

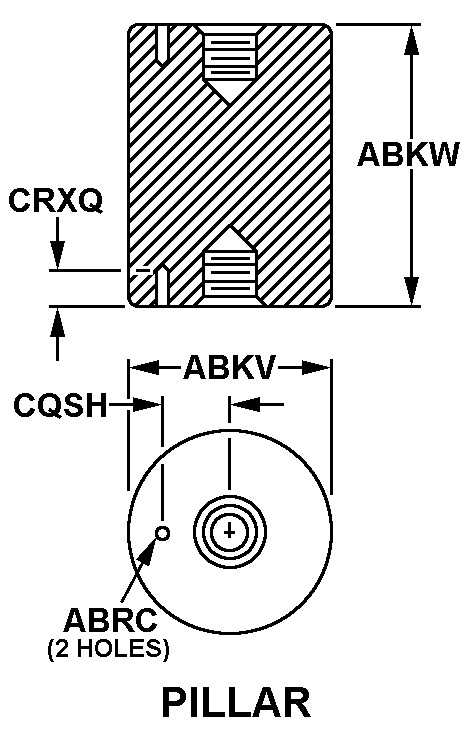

| STYLE DESIGNATOR | M2 PILLAR |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 5.000 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.130 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.375 INCHES NOMINAL |
| NONTURN FEATURE HOLE DEPTH | 0.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-5A |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC MOUNTING FACILITY UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.250 ELECTRICAL TERMINATION INCHES NOMINAL 0.250 MOUNTING FACILITY INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 20 ELECTRICAL TERMINATION 20 MOUNTING FACILITY |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION 2B MOUNTING FACILITY |
| THREAD LENGTH AND LOCATION | 0.625 ELECTRICAL TERMINATION INCHES NOMINAL 0.625 MOUNTING FACILITY INCHES NOMINAL |
| MANUFACTURERS CODE | 81350 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANI8 |
| MANUFACTURERS CODE | 81350 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NS5W0540 |
