NSN 5970-00-280-4948 D87949, D879-49, 10
Product Details | PIN INSULATOR
5970-00-280-4948 An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin.
Part Alternates: D87949, D879-49, 10, 5970-00-280-4948, 00-280-4948, 5970002804948, 002804948
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-4948 | 18289 ( INSULATOR, PIN ) |
Drawings & Photos | NSN 5970-00-280-4948
Demand History | NSN 5970-00-280-4948
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10 | 2022-02-53 | 12 | PK |
| 10 | 2018-02-52 | 2 | United States |
| 10 | 2015-06-173 | 6 | United States |
| 10 | 2015-06-173 | 6 | United States |
| 10 | 2012-09-262 | 300 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-280-4948
Technical Data | NSN 5970-00-280-4948
| Characteristic | Specifications |
|---|---|

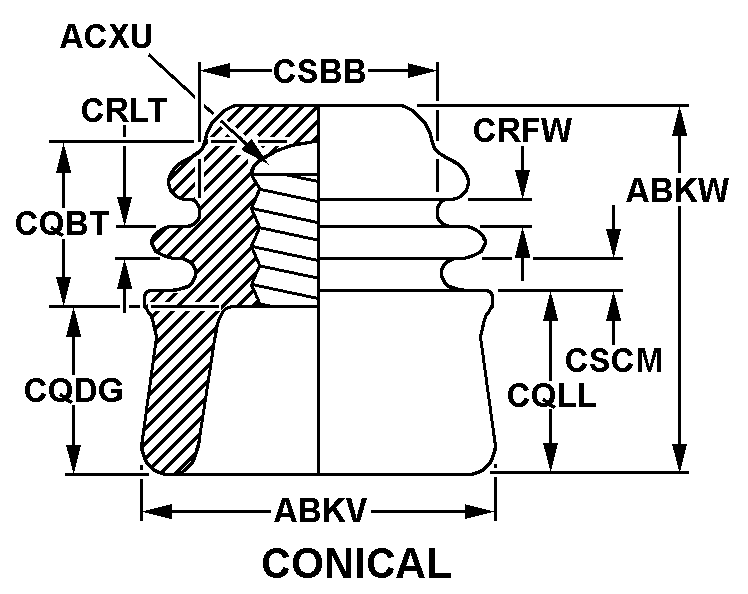

| STYLE DESIGNATOR | H8 CONICAL |
| OUTSIDE DIAMETER | 2.438 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| PINHOLE DIAMETER | 1.000 INCHES NOMINAL |
| PIN HOLE DEPTH | 1.563 INCHES NOMINAL |
| SKIRT LENGTH | 1.375 INCHES NOMINAL |
| SECOND DISTANCE BETWEEN CONDUCTOR GROOVES | 1.594 INCHES NOMINAL |
| FIRST RADIAL GROOVE WIDTH | 0.500 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 0.219 INCHES NOMINAL |
| RADIAL GROOVE DIAMETER | 1.716 INCHES NOMINAL |
| SECOND RADIAL GROOVE WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL AND LOCATION | MOUNTING BASE GLASS, LIME OVERALL GLASS, LIME |
