NSN 5970-00-280-3398 C2070049, C207-0049, J767
Product Details | INSULATOR ASSEMBLY
5970-00-280-3398 Two or more insulators on a common mounting or mounted on each other. Do not use for single complete feedthru insulators (double bowl type) which are termed INSULATOR, FEEDTHRU regardless of complexity.
Part Alternates: C2070049, C207-0049, J767, 5970-00-280-3398, 00-280-3398, 5970002803398, 002803398
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-3398 | 00220 ( INSULATOR ASSEMBLY ) |
Drawings & Photos | NSN 5970-00-280-3398
Demand History | NSN 5970-00-280-3398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-280-3398 | 2024-07-200 | 45 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-280-3398
Related Products | NSN 5970-00-280-3398
Technical Data | NSN 5970-00-280-3398
| Characteristic | Specifications |
|---|---|
| INSULATOR QUANTITY | 2 |
| INSULATOR NAME | STRAIN |
| IDENTIFYING NUMBER | PART NO. J101 |

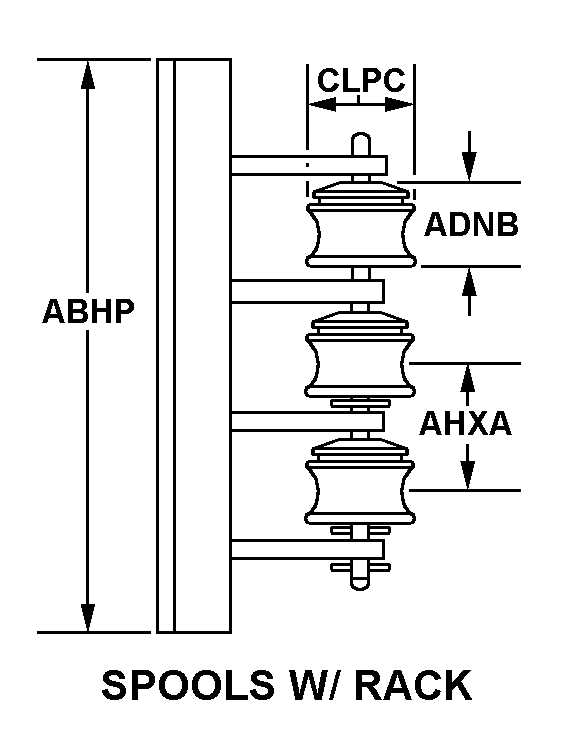

| STYLE DESIGNATOR | A7 SPOOLS W/RACK |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| SPOOL LENGTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SPOOLS | 8.000 INCHES NOMINAL |
| SPOOL OUTSIDE DIAMETER | 3.000 INCHES NOMINAL |
| MOUNTING MATERIAL | STEEL |
| MOUNTING CONFIGURATION | TWO 11/16 IN. BY 1-1/4 IN. SLOTTED MTG HOLES,16 IN. BETWEEN CENTERS |
Restrictions/Controls & Freight Information | NSN 5970-00-280-3398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
