NSN 5970-00-235-5103 SCB42046, SC-B-42046, 00-235-5103
Product Details | BEAD INSULATOR
5970-00-235-5103 An insulator specifically designed to be used as a spacer in, or in conjunction with, such items as coaxial cables, transmission lines, brush shunts, test leads, high voltage lines and the like. Has an axial hole through which the wire passes and the length of which is considerably more than 25 percent of the largest diameter perpendicular to the hole. The external shapes may be variations of cylindrical and spherical shapes.
Part Alternates: SCB42046, SC-B-42046, 5970-00-235-5103, 00-235-5103, 5970002355103, 002355103
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-235-5103 | 18299 ( INSULATOR, BEAD ) |

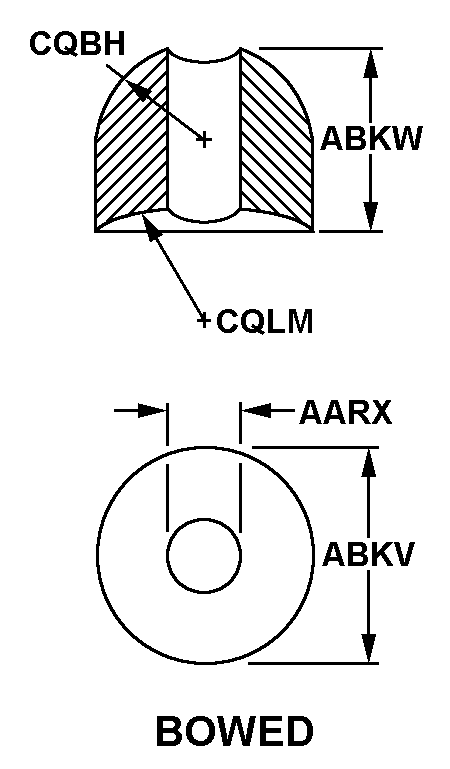

Drawings & Photos | NSN 5970-00-235-5103
Cross Reference | NSN 5970-00-235-5103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC-B-42046 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
