NSN 5970-00-194-8246 SCDSCA269A, SL70046, SL7004-6
Product Details | STANDOFF INSULATOR
5970-00-194-8246 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: SCDSCA269A, SL70046, SL7004-6, LS70046, LS7004-6, 3G130064, 3G1300-64, 5970-00-194-8246, 00-194-8246, 5970001948246, 001948246
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-194-8246 | 00225 ( INSULATOR, STANDOFF ) |

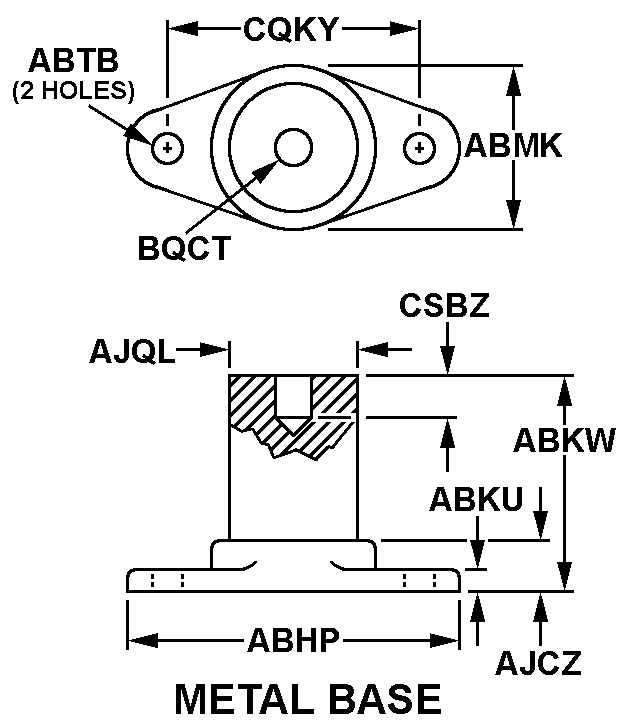

Drawings & Photos | NSN 5970-00-194-8246
Demand History | NSN 5970-00-194-8246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS70046 | 2021-12-354 | 2 | US |
| SCDSCA269A | 2013-08-229 | 40 | Canada |
Cross Reference | NSN 5970-00-194-8246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3G1300-64 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| LS7004-6 | 78616 | CARBORUNDUM CO THE REFRACTORIES AND ELECTRONICS DIV |
| SCDSCA269A | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SL7004-6 | 78616 | CARBORUNDUM CO THE REFRACTORIES AND ELECTRONICS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-194-8246
Technical Data | NSN 5970-00-194-8246
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M25 METAL BASE |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 4.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| BASE HEIGHT | 0.750 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.250 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 2.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-2A |
| IDENTIFICATION CODE COLOR | BROWN |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5970-00-194-8246
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | T | 55 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
