NSN 5970-00-185-0182 29282732, 2928273-2, 3325945
Product Details | STANDOFF INSULATOR
5970-00-185-0182 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 29282732, 2928273-2, 3325945, 3325-94-5, 7736567P0019, 7736567P19, 5970-00-185-0182, 00-185-0182, 5970001850182, 001850182
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 FEB 1971 | 00-185-0182 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-185-0182
Demand History | NSN 5970-00-185-0182
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-185-0182 | 2019-07-192 | 122 | DIBBS |
| 5970-00-185-0182 | 2019-07-182 | 10 | DIBBS |
Cross Reference | NSN 5970-00-185-0182
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2928273-2 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 3325-94-5 | 17117 | ELECTRONIC MOLDING CORP |
| 3325-94-5 | 61638 | ADVANCED INTERCONNECTIONS CORPORATION |
| 7736567P0019 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 7736567P19 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-185-0182
Related Products | NSN 5970-00-185-0182
Technical Data | NSN 5970-00-185-0182
| Characteristic | Specifications |
|---|---|

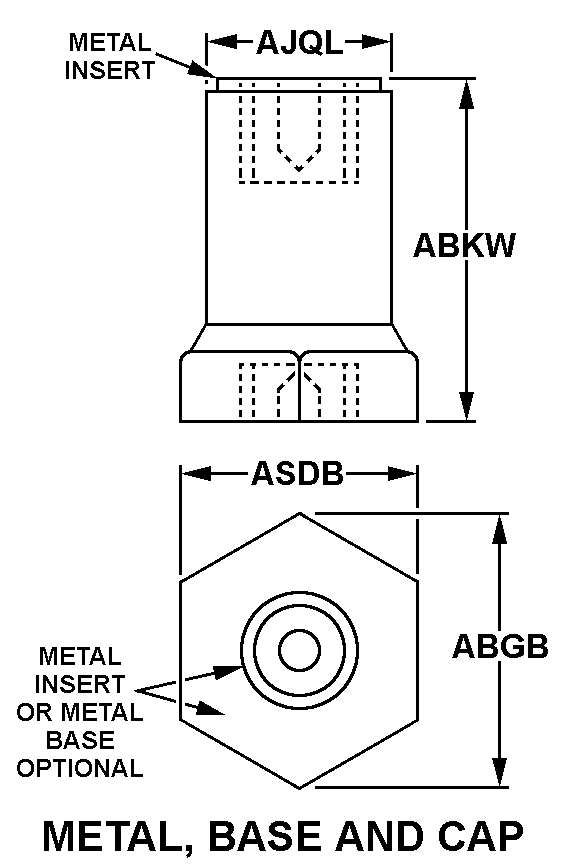

| STYLE DESIGNATOR | M22 METAL, BASE AND CAP |
