NSN 5970-00-177-1611 C9061302, C906-1302, L72R
Product Details | PIN INSULATOR
5970-00-177-1611 An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin.
Part Alternates: C9061302, C906-1302, L72R, 38222-3010, 5970-00-177-1611, 00-177-1611, 5970001771611, 382223010, 001771611
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JAN 1970 | 00-177-1611 | 18289 ( INSULATOR, PIN ) |

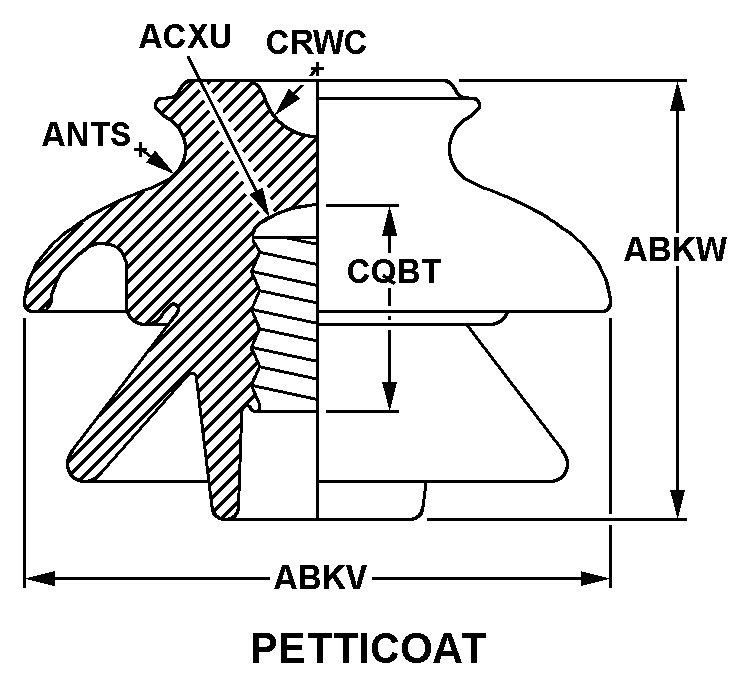

Drawings & Photos | NSN 5970-00-177-1611
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-177-1611
Related Products | NSN 5970-00-177-1611
Technical Data | NSN 5970-00-177-1611
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | H3 PETTICOAT |
| OUTSIDE DIAMETER | 9.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.500 INCHES NOMINAL |
| PINHOLE DIAMETER | 1.375 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.562 INCHES NOMINAL |
| PIN HOLE DEPTH | 2.125 INCHES NOMINAL |
| TOP WIRE GROOVE RADIUS | 0.750 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| IDENTIFICATION CODE COLOR | BROWN |
| CONDUCTOR MECHANICAL ACCOMMODATION QUANTITY | 1 |
