NSN 5970-00-175-2802 REG1AA224TYPE61478, 61478, 329L1 1-8
Product Details | STANDOFF INSULATOR
5970-00-175-2802 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: REG1AA224TYPE61478, 61478, 329L1 1-8, 329L118, 5970-00-175-2802, 00-175-2802, 5970001752802, 001752802
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-175-2802 | 00225 ( INSULATOR, STANDOFF ) |

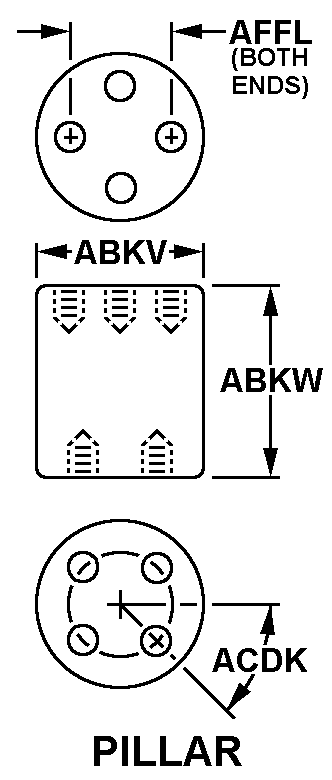

Drawings & Photos | NSN 5970-00-175-2802
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-175-2802
Technical Data | NSN 5970-00-175-2802
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M3 PILLAR |
| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| FIRST ANGULAR SPACING IN DEG | 90.0 |
| MOUNTING BOLT CIRCLE DIAMETER | 1.062 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, JAN-I-10, GRADE L-2A |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 THREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.164 ELECTRICAL TERMINATION INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION |
Restrictions/Controls & Freight Information | NSN 5970-00-175-2802
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | T | 55 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
