Product Details | BUSHING INSULATOR
5970-00-163-9124 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 53279852, 532798-52, 7559302, 755930-2, 5970-00-163-9124, 00-163-9124, 5970001639124, 001639124
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 12 NOV 1971 | 00-163-9124 | 18301 ( INSULATOR, BUSHING ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-163-9124
Related Products | NSN 5970-00-163-9124
Technical Data | NSN 5970-00-163-9124
Characteristic | Specifications |
---|---|

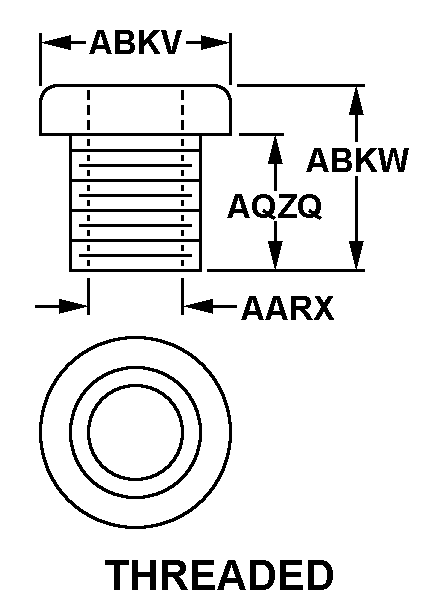

STYLE DESIGNATOR | C64 THREADED |
INSIDE DIAMETER | 0.128 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
OVERALL HEIGHT | 0.594 INCHES NOMINAL |
SHANK HEIGHT | 0.094 INCHES NOMINAL |
MATERIAL AND LOCATION | OVERALL PLASTIC, EPOXY, MIL-P-18177, TYPE GEE |
MANUFACTURERS CODE | 96214 |
DESIGN CONTROL REFERENCE | 755930-2 |
