NSN 5970-00-162-8668 14P2387562111, 14P238756-21-11, 00-162-8668
Product Details | BUSHING INSULATOR
5970-00-162-8668 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 14P2387562111, 14P238756-21-11, 5970-00-162-8668, 00-162-8668, 5970001628668, 001628668
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 FEB 1973 | 00-162-8668 | 18301 ( INSULATOR, BUSHING ) |

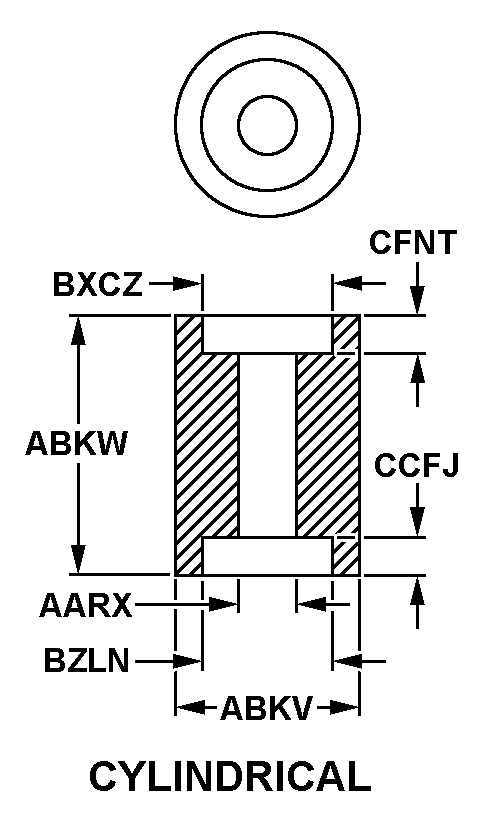

Drawings & Photos | NSN 5970-00-162-8668
Cross Reference | NSN 5970-00-162-8668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14P238756-21-11 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-162-8668
Technical Data | NSN 5970-00-162-8668
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C5 CYLINDRICAL |
| INSIDE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.721 INCHES MINIMUM AND 0.727 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| FIRST COUNTERBORE DIAMETER | 0.268 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| SECOND COUNTERBORE DIAMETER | 0.097 INCHES MINIMUM AND 0.107 INCHES MAXIMUM |
| SECOND COUNTERBORE DEPTH | 0.490 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| FIRST COUNTERBORE DEPTH | 0.400 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| MATERIAL AND LOCATION | OVERALL PLASTIC, DIALLYL PHTHALATE, MIL-M-14, TYPE MDG |
| MANUFACTURERS CODE | 98738 |
| DESIGN CONTROL REFERENCE | 14P238756-21-11 |
Restrictions/Controls & Freight Information | NSN 5970-00-162-8668
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
