NSN 5970-00-158-6825 K7861863P1, 3G145027, 3G1450-27
Product Details | STANDOFF INSULATOR
5970-00-158-6825 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: K7861863P1, 3G145027, 3G1450-27, 5970-00-158-6825, 00-158-6825, 5970001586825, 001586825
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-158-6825 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-158-6825
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-158-6825
Technical Data | NSN 5970-00-158-6825
| Characteristic | Specifications |
|---|---|

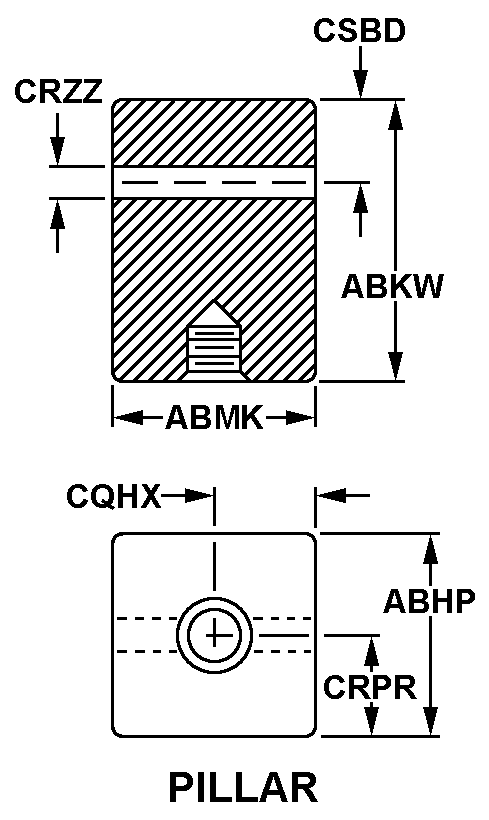

| STYLE DESIGNATOR | M9 PILLAR |
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| OVERALL HEIGHT | 1.687 INCHES NOMINAL |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| FIRST CENTER DISTANCE | 0.187 INCHES NOMINAL |
| SECOND CENTER DISTANCE | 0.187 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.152 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 0.187 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| SCREW THREAD DIAMETER AND LOCATION | 0.164 ELECTRICAL TERMINATION INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION |
