NSN 5970-00-144-1602 NL422B57035, NL422B57-035, MILI2326418
Product Details | BOWL INSULATOR
5970-00-144-1602 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Part Alternates: NL422B57035, NL422B57-035, MILI2326418, MILI23264-18, 5970-00-144-1602, 00-144-1602, 5970001441602, 001441602
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-144-1602 | 18300 ( INSULATOR, BOWL ) |

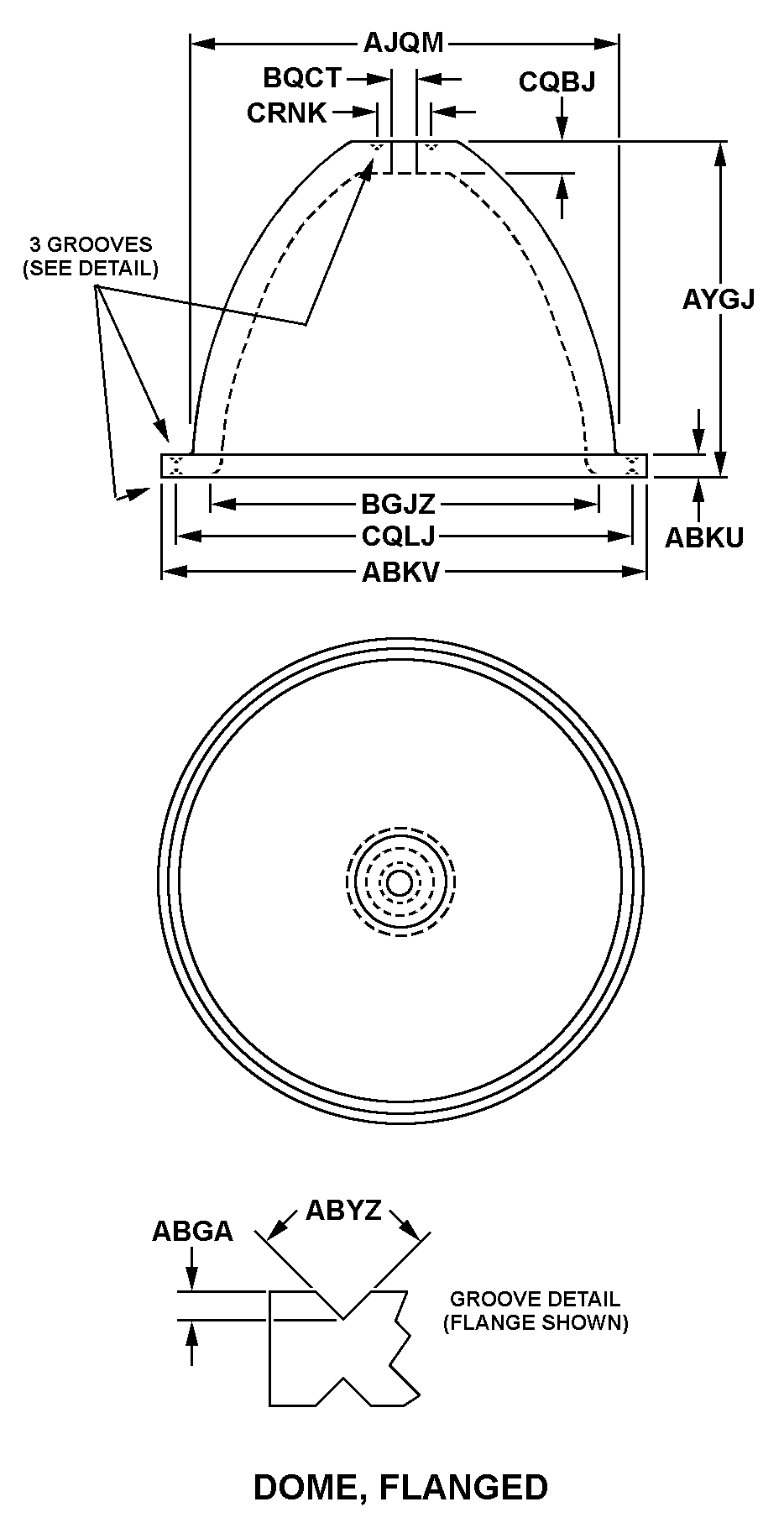

Drawings & Photos | NSN 5970-00-144-1602
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-144-1602
Technical Data | NSN 5970-00-144-1602
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B8 DOME, FLANGED |
| GROOVE DEPTH | 0.062 INCHES NOMINAL |
| FLANGE THICKNESS | 0.375 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.938 INCHES NOMINAL |
| GROOVE ANGLE IN DEG | 60.0 |
| BOWL DIAMETER | 6.250 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 4.375 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 5.500 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.688 INCHES NOMINAL |
| TOP THICKNESS | 0.375 INCHES NOMINAL |
| MAJOR GROOVE DIAMETER | 6.562 INCHES NOMINAL |
| MINOR GROOVE DIAMETER | 1.062 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL CERAMIC, MIL-I-10, GRADE L422 |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | BROWN |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILI23264-18 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NL422B57-035 |
