NSN 5970-00-119-4363 BUWEPSDWG2682657, 2682657, 00-119-4363
Product Details | DISK INSULATOR
5970-00-119-4363 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Part Alternates: BUWEPSDWG2682657, 2682657, 5970-00-119-4363, 00-119-4363, 5970001194363, 001194363
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 OCT 1968 | 00-119-4363 | 18295 ( INSULATOR, DISK ) |
Drawings & Photos | NSN 5970-00-119-4363
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-119-4363
Technical Data | NSN 5970-00-119-4363
| Characteristic | Specifications |
|---|---|

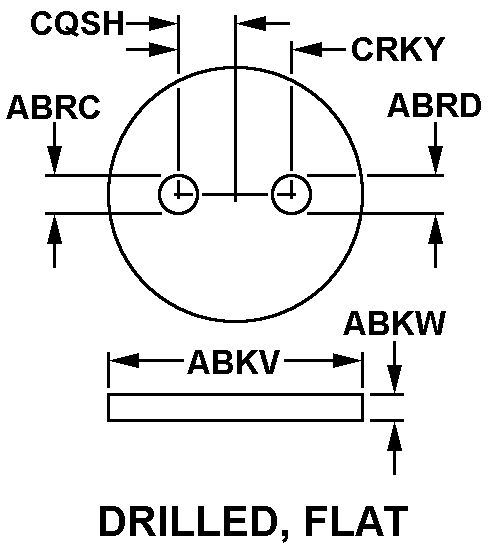

| STYLE DESIGNATOR | E5 DRILLED, FLAT |
| OUTSIDE DIAMETER | 0.434 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.047 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.105 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.105 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| FIRST HOLE SPACING | 0.090 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| SECOND HOLE SPACING | 0.187 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, POLYAMIDE, MIL-M-20693, COMP A, TYPE 3, GRADE E |
