NSN 5970-00-075-6109 5456978002, 545-6978-002, 00-075-6109
Product Details | PLATE INSULATOR
5970-00-075-6109 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 5456978002, 545-6978-002, 5970-00-075-6109, 00-075-6109, 5970000756109, 000756109
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-075-6109 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-075-6109
Cross Reference | NSN 5970-00-075-6109
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 545-6978-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-075-6109
Related Products | NSN 5970-00-075-6109
Technical Data | NSN 5970-00-075-6109
| Characteristic | Specifications |
|---|---|

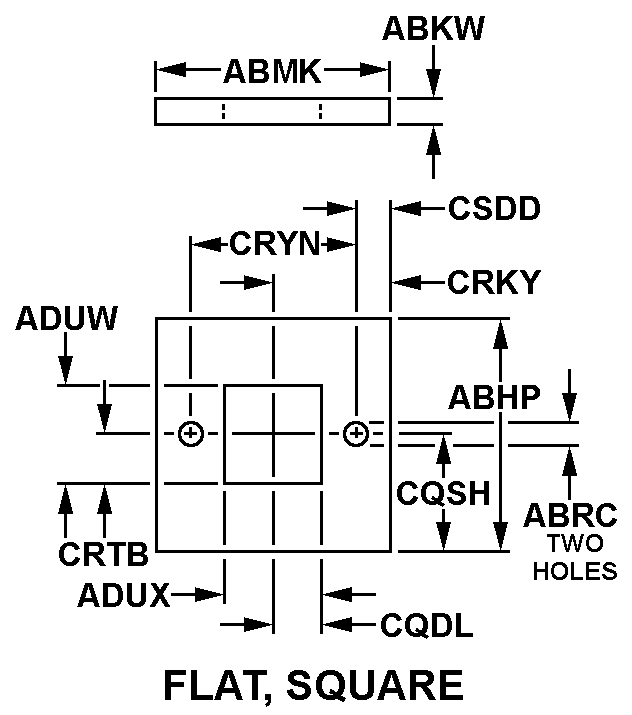

| STYLE DESIGNATOR | K30 FLAT, SQUARE |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.003 INCHES NOMINAL |
| OVERALL WIDTH | 0.781 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CENTER HOLE LENGTH | 0.312 INCHES NOMINAL |
| CENTER HOLE WIDTH | 0.125 INCHES NOMINAL |
| FOURTH HOLE SPACING | 0.0625 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.438 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.3905 INCHES NOMINAL |
| THIRD HOLE SPACING | 0.219 INCHES NOMINAL |
| FIFTH HOLE SPACING | 0.500 INCHES NOMINAL |
| SIXTH HOLE SPACING | 0.141 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL MICA, HH-I-536 |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 545-6978-002 |
Restrictions/Controls & Freight Information | NSN 5970-00-075-6109
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-075-6109
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
