NSN 5970-00-074-8813 10458SP, 10-458SP, 26006H12
Product Details | STANDOFF INSULATOR
5970-00-074-8813 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 10458SP, 10-458SP, 26006H12, 5970-00-074-8813, 00-074-8813, 5970000748813, 000748813
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-074-8813 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-074-8813
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-074-8813
Related Products | NSN 5970-00-074-8813
Technical Data | NSN 5970-00-074-8813
| Characteristic | Specifications |
|---|---|

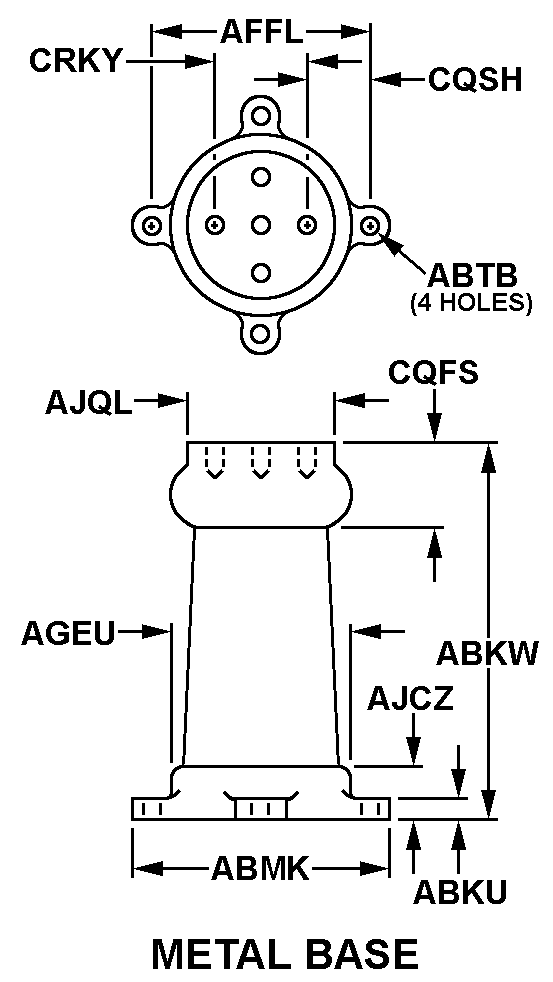

| STYLE DESIGNATOR | M35 METAL BASE |
| FLANGE THICKNESS | 0.937 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.438 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 4.125 INCHES NOMINAL |
| BASE DIAMETER | 2.250 INCHES NOMINAL |
| BASE HEIGHT | 0.331 INCHES NOMINAL |
| TOP DIAMETER | 1.875 INCHES NOMINAL |
| FIRST CAP HEIGHT | 1.500 INCHES NOMINAL |
| FIRST HOLE SPACING | 1.062 INCHES NOMINAL |
| SECOND HOLE SPACING | 2.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | MOUNTING BASE METAL OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.312 ELECTRICAL TERMINATION INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 18 ELECTRICAL TERMINATION |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION |
| THREAD LENGTH AND LOCATION | 0.500 CAP INCHES NOMINAL |
| SPECIAL FEATURES | METAL CAP,TWO THREADED HOLES SPACED 1.500IN. CENTER TO CENTER ON TOP |
| MANUFACTURERS CODE | 75539 |
| DESIGN CONTROL REFERENCE | 26006H12 |
